7000-44681-0000000

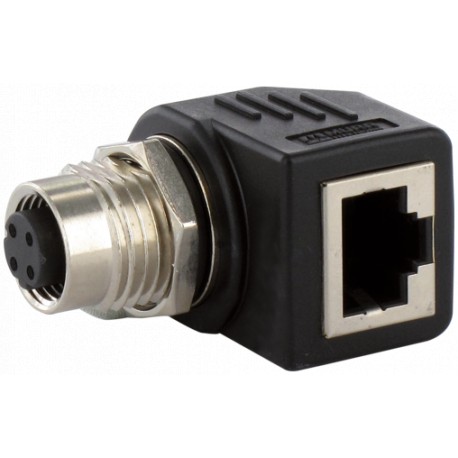

7000-44681-0000000 MURRELEKTRONIK M12 female D-coded / RJ45 Ethernet adapter 90° 4-pol.
$0.00USD
4373 in stock
Key Specifications
Form:44681
Coding:M12, D-coded
Material:PUR
Protection:IP68 (M12) - IP20 (RJ45)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 44681 |
| Coding | M12, D-coded |
| Material | PUR |
| Protection | IP68 (M12) - IP20 (RJ45) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Locking material | Brass, chrome plated |
| Operating voltage | max. 60 V DC |
| Temperature range | -25...+85 °C |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Mounting plate thickness | 2...5 mm |
| Operating current per contact | max. 1.76 A |
| Product article number of manufacturer | 7000-44681-0000000 |
Product Description
Adaptor M12 female / RJ45 90°4-pol., shielded, CAT5
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
