In Stock Hot Product
7000-44541-7921000

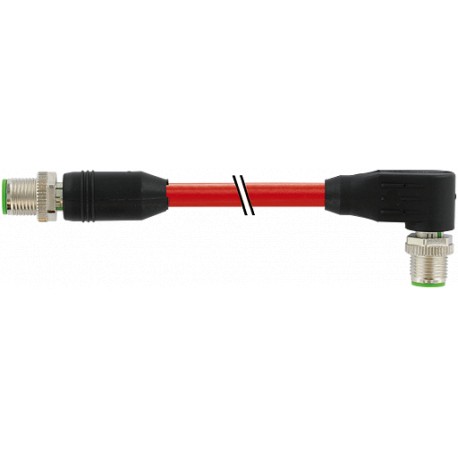

7000-44541-7921000 MURRELEKTRONIK M12 male 0° / M12 male 90° Ethernet PUR 2x2xAWG22 shielded red UL/CSA + dr..
$0.00USD
3077 in stock
Key Specifications
:min. 85%
EAN:4048879406628
Form:44541
Coding:M12, D-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| min. 85% | |
| EAN | 4048879406628 |
| Form | 44541 |
| Coding | M12, D-coded |
| Shield | yes |
| eClass | 27061801 |
| Art.No.: | 7000-44541-7921000 |
| Material | PUR |
| Outer Ø | 6.7 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Cable number | 792 |
| Jacket Color | red |
| Transfer rate | up to 100 Mbit/s full duplex |
| Color (jacket) | red |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PO (wh, ye, bl, or) |
| Diameter (core) | 2×2×AWG22 |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 60 V DC |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 3 Mio. |
| Cable weight [g/m] | 69,30 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 5 × outer Ø |
| Rated surge voltage | 1.5 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Alternative product: | Product ComparisonEthernet CAT5Male 90° – male straightM12 – M12, 4-poleD-codedshieldedFurther cable lengths on request. Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm44541CablesCable number792No./diameter of wires2×2×0.34 mm²Wire isolationPO (wh, ye, bl, or)C-track properties3 Mio.Jacket ColorredMaterial (jacket)PUR (UL/CSA)Outer Ø6.7 mm ±5%Bend radius (moving)12 × outer ØTemperature range (fixed)-40...+80 °CTemperature range (mobile)-30...+70 °CCable identification792Approval (cable)UL (AWM-Style 20233/11602), CSA; CECable weight [g/m]69,30Material (wire)Cu wire, bareResistor (core)max. 55 Ω/km (20 °C)Diameter (core)2×2×AWG22Material (wire isolation)POWire-Ø incl. isolation1.4 mm ±5%Color/numbering of wireswh, ye, bl, orShieldyesmin. 85%Material (jacket)PUROuter-Ø (jacket)6.7 mm ±5%Color (jacket)redthermal resistanceflame retardantNominal voltage300 VTemperature range (fixed)-40...+80 °CTemperature range (mobile)-30...+70 °CBend radius (fixed)5 × outer ØBend radius (moving)12 × outer ØNo. of bending cycles (C-track)max. 3 Mio. (25 °C)Traversing distance (C-track)max. 5 m (horizontal)Travel speed (C-track)max. 3.3 m/sAcceleration (C-track)max. 2 m/s²Technical DataOperating voltagemax. 60 V DCOperating voltage (only UL listed)max. 30 V DCRated surge voltage1.5 kVOperating current per contactmax. 4 AMaterial groupIEC 60664-1, category ITransfer parametersCAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)Transfer rateup to 100 Mbit/s full duplexCodingM12, D-codedLocking of portsScrew thread M12 × 1 mm (recommended torque 0.6 Nm) self-securingCompression glandM12 (SW13)ProtectionIP67 inserted and tightened (EN 60529)Locking materialZinc die casting, matte nickel platedMaterialPURsuitable for corrugated tube (internal Ø)withoutGeneral dataStandardsDIN EN 61076-2-101 (M12)Pollution Degree3Temperature range-25...+85 °C, depending on cable qualityCommercial datacountry of originDEcustoms tariff number85444290EAN4048879406628eClass27061801Packaging unit1 |
| Bend radius (moving) | 12 × outer Ø |
| Cable identification | 792 |
| No./diameter of wires | 2×2×0.34 mm² |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 2 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Material (wire isolation) | PO |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Operating voltage (only UL listed) | max. 30 V DC |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 0° / M12 male 90° D-cod. shieldedPUR 1x4xAWG22 shielded rd UL/CSA+drag ch. 10m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
