7000-44001-8430600

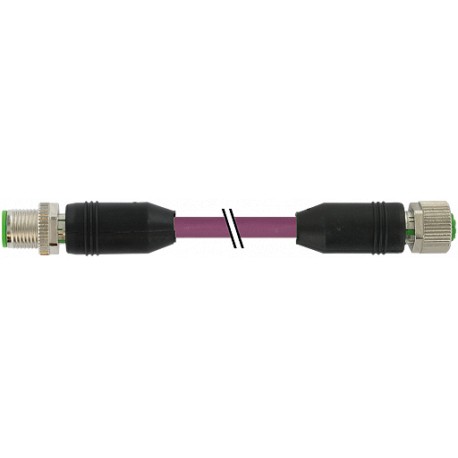

7000-44001-8430600 MURRELEKTRONIK M12 male 0° / M12 female 0° B-coded Profibus PUR 1x2xAWG23 shielded violet..
$0.00USD
3839 in stock
Key Specifications
EAN:4048879457774
Form:44001
Coding:B-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879457774 |
| Form | 44001 |
| Coding | B-coded |
| Shield | yes |
| eClass | 27061801 |
| Material | PUR |
| Outer Ø | 8.0 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | violet |
| Color (jacket) | violet |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | PE (rd, gn) |
| Diameter (core) | 1× 2× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V |
| Resistor (core) | max. 66 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/10578), CSA; CE |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 60 V AC/DC |
| Outer-Ø (jacket) | 8.0 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 79,20 |
| thermal resistance | flame retardant |
| Bend radius (fixed) | 8× outer Ø |
| Construction (core) | 19× 0.15 mm (multi-strand wire class 5) |
| Rated surge voltage | 1.5 kV |
| Bend radius (moving) | 12× outer Ø |
| Cable identification | 843 |
| No./diameter of wires | 1× 2× 0.25 mm² |
| Single wire Ø (core) | 0.15 mm |
| customs tariff number | 85444290 |
| Wire-Ø incl. isolation | 2.6 mm ±5% |
| Color/numbering of wires | rd, gn |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+50 °C |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 0° / M12 female 0° B-cod. shieldedPUR 1x2xAWG22 shielded vt UL/CSA+robot 6m
