7000-42261-0000000

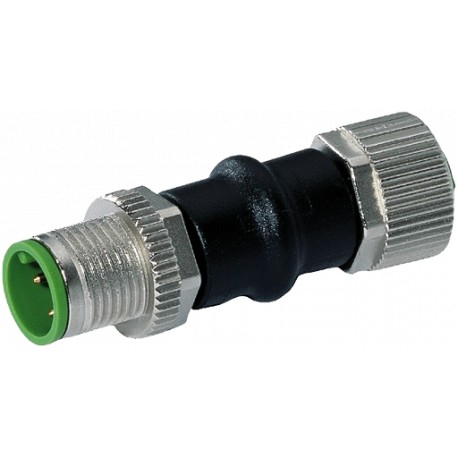

7000-42261-0000000 MURRELEKTRONIK ADAPTOR M12 MALE 5 POLE/ M12 FEMALE 4 POLE SHIELDED
$0.00USD
3782 in stock
Key Specifications
EAN:4048879332927
Form:42261
eClass:27143423
Material:PUR
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879332927 |
| Form | 42261 |
| eClass | 27143423 |
| Material | PUR |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| customs tariff number | 85366990 |
| Test isolation voltage | 0.8 kV eff/rms |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
Adaptor M12 male / M12 female A-cod. shielded5-pol. / 4-pol., for analog sensors
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
