7000-42116-0000000

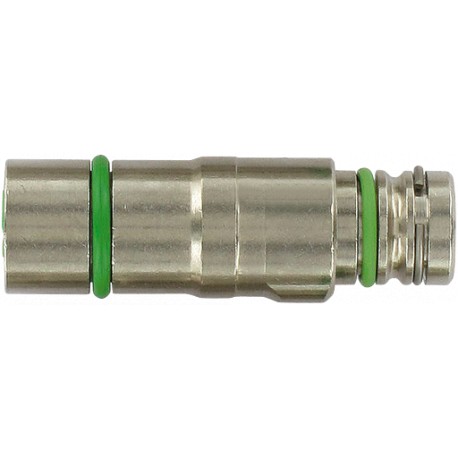

7000-42116-0000000 MURRELEKTRONIK M12 MV insert shielded male snap / female
$0.00USD
4468 in stock
Key Specifications
EAN:4048879562812
Form:42116
Coding:A-coded
Gasket:FKM
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879562812 |
| Form | 42116 |
| Coding | A-coded |
| Gasket | FKM |
| eClass | 27260702 |
| Weight: | 0.037 kg |
| Art.No.: | 7000-42116-0000000 |
| Material | Brass, nickel plated |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Packaging unit | 1 |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Compression gland | M12 |
| Operating voltage | 49 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| customs tariff number | 85369010 |
| Test isolation voltage | 1.5 kV |
| Operating current per contact | max. 4 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
