7000-42061-0000000

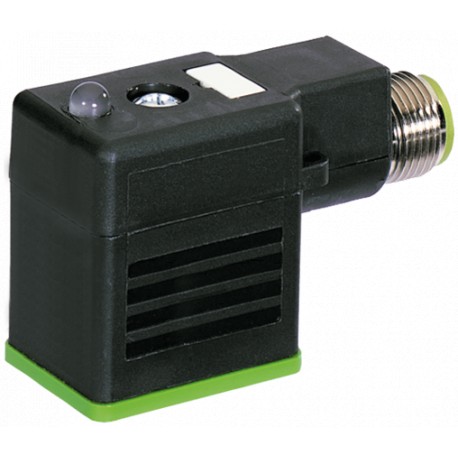

7000-42061-0000000 MURRELEKTRONIK M12 male rear / MSUD valve plug form BI 11 mm
$0.00USD
3763 in stock
Key Specifications
Weight::0.031 kg
Art.No.::7000-42061-0000000
Country of origin::CZ
Mounting set (Technical Data):M3
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight: | 0.031 kg |
| Art.No.: | 7000-42061-0000000 |
| Country of origin: | CZ |
| Mounting set (Technical Data) | M3 |
| No. of poles (Technical Data) | 2 + PE |
| Tightening torque (Technical Data) | 0,6 Nm |
| Operating voltage AC (Technical Data) | 24 V |
| Operating voltage DC (Technical Data) | 24 V |
| Family construction form (Technical Data) | M12 |
| Operating voltage AC max. (Technical Data) | 30 V |
| Operating voltage AC min. (Technical Data) | 18 V |
| Operating voltage DC max. (Technical Data) | 30 V |
| Operating voltage DC min. (Technical Data) | 18 V |
| Operating temperature max. (Technical Data) | 85 °C |
| Operating temperature min. (Technical Data) | -25 °C |
| Current operating per contact max. (Technical Data) | 4 A |
| Degree of protection (EN IEC 60529) (Technical Data) | IP67 |
| Additional condition protection degree (Technical Data) | inserted, screwed |
Product Description
M12 MALE ON REAR OF MSUD VALVE PLUG FORM BI 11MM
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
