In Stock Hot Product
7000-41135-0000000

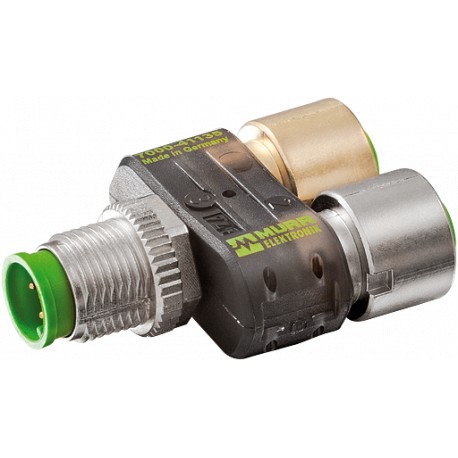

7000-41135-0000000 MURRELEKTRONIK T-coupler SlimLine (LED) M12 male 5 pole / 2XM12 female 4 pole
$0.00USD
3355 in stock
Key Specifications
EAN:4048879144858
Form:41135
eClass:27143423
Art.No.::7000-41135-0000000
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879144858 |
| Form | 41135 |
| eClass | 27143423 |
| Art.No.: | 7000-41135-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Packaging unit | 1 |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Operating voltage | 24 V DC ±25% |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Rated surge voltage | 0.8 kV |
| Alternative product: | Product ComparisonT-coupler (Slim Line)Male straight – females straightM12 – M125-pole3 × LED (PNP)Distribution function (NO)Plastic housings with good resistance against chemicals and oils. The resistance to aggressive media should be individually tested for your application. Further details on request.FormForm41135Technical DataOperating voltage24 V DC ±25%Operating voltage (only UL listed)30 V DCRated surge voltage0.8 kVOperating current per contactmax. 4 ALocking of portsScrew thread M12 × 1 mm (recommended torque 0.6 Nm) self-securingProtectionIP67 inserted and tightened (EN 60529)General dataTemperature range-25...+85 °CCommercial datacountry of originDEcustoms tariff number85366990EAN4048879144858eClass27143423Packaging unit1 |
| customs tariff number | 85366990 |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | 30 V DC |
Product Description
T-Coupler Slimline M12 male/2xM12 female A-cod LED5-pol. / 2x 4-pol.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
