7000-40541-3510150

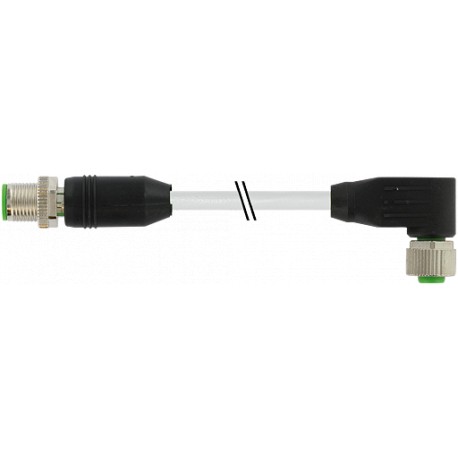

7000-40541-3510150 MURRELEKTRONIK M12 male 0° / M12 female 90° PUR 5x0.34 shielded gray UL/CSA 1,5m
$0.00USD
4384 in stock
Key Specifications
EAN:4048879366342
Form:40541
Coding:A-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879366342 |
| Form | 40541 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 6.9 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable number | 351 |
| Jacket Color | gray |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PP (br, wh, bl, bk, gnye) |
| Diameter (core) | 5× 0.34 mm² |
| Approval (cable) | UL (AWM-Style 20233/1992), CSA; CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (gasket) | FKM |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | CZ |
| Bend radius (fixed) | 10× outer Ø |
| Rated surge voltage | 1.5 kV |
| Bend radius (moving) | 15× outer Ø |
| No./diameter of wires | 5× 0.34 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 male 0° / M12 female 90° A-cod. shieldedPUR 5x0.34 shielded gy UL/CSA 1,5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
