7000-40501-8201600

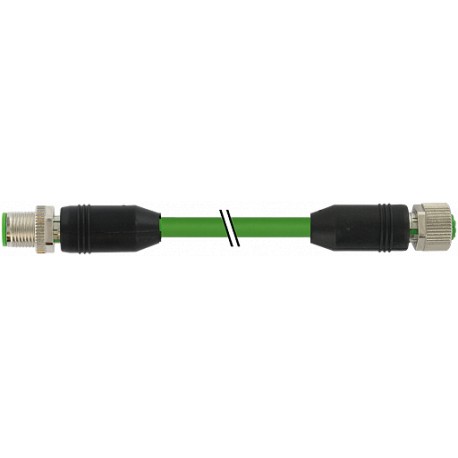

7000-40501-8201600 MURRELEKTRONIK M12 male 0° / M12 female 0° PUR 4X0.34 shielded green 16m
$0.00USD
4733 in stock
Key Specifications
AWG:similar to AWG 22
EAN:4048879165396
Form:40501
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879165396 |
| Form | 40501 |
| Shield | yes |
| eClass | 27279218 |
| Outer Ø | 5.9 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Jacket Color | green |
| Test voltage | 1500 V AC |
| Color (jacket) | green |
| Packaging unit | 1 |
| Wire isolation | TPE-E (br, bk, bl, wh) |
| Diameter (core) | 4× 0.34 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300/500 V AC |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Approval (cable) | CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR |
| Operating voltage | max. 60 V AC/DC |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 48,95 |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 820 |
| optical shield cover | min. 85% |
| No./diameter of wires | 4× 0.34 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 4 wires twisted |
| customs tariff number | 85444290 |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Material (wire isolation) | TPE |
| Temperature range (fixed) | -50...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -40...+80 °C |
| Operating current per contact | max. 4 A |
| Shore hardness (wire isolation) | 85 ±5 A |
| Material property (wire isolation) | halogen- and lead-free |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
M12 male 0° / M12 female 0° A-cod. shieldedPUR 4x0.34 shielded gn 16m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
