7000-40001-6230600

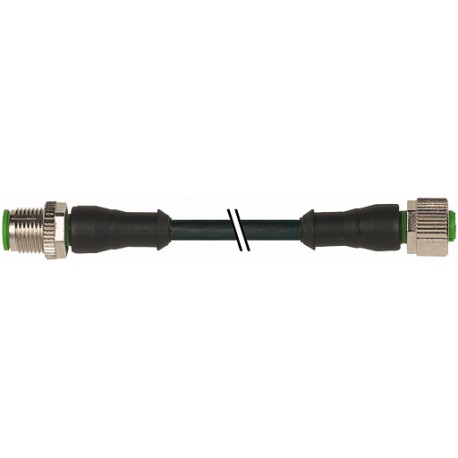

7000-40001-6230600 MURRELEKTRONIK M12 male 0° / M12 female 0° PUR 3x0.34 black UL/CSA 6m
$0.00USD
4286 in stock
Key Specifications
AWG:similar to AWG 22
EAN:4048879185622
Form:40001
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879185622 |
| Form | 40001 |
| Coding | A-coded |
| Shield | no |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 4.9 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Cable Type | 2 (PUR/PVC) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | black |
| No. of poles | 3 |
| Test voltage | 2000 V AC |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC (br, bl, bk) |
| Diameter (core) | 3× 0.34 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | UL 300 V AC |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20549/1731), CSA; CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR/PVC (UL/CSA) |
| Operating voltage | max. 250 V AC/DC |
| Outer-Ø (jacket) | 4.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 2 Mio. |
| Cable weight [g/m] | 35,97 |
| Bend radius (fixed) | 10× outer Ø |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 2.5 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 15× outer Ø |
| Cable identification | 623 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 3× 0.34 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 3 wires twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Shore hardness (jacket) | 80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket) |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | black similar to RAL 9005 |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -30...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -5...+80 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Shore hardness (wire isolation) | 43 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | 10 mm |
Product Description
M12 male 0° / M12 female 0°
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
