In Stock Hot Product
7000-30155-0000000

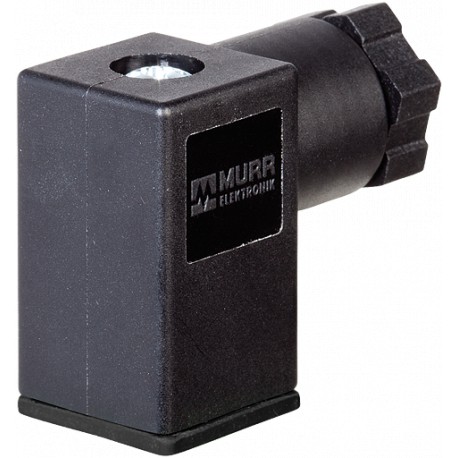

7000-30155-0000000 MURRELEKTRONIK SVS ECO valve plug form CI 9.4 mm 230V 2+PE field-wireable M16x1.5
$0.00USD
3215 in stock
Key Specifications
EAN:4048879186971
Form:30155
eClass:27279221
Printing:None
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879186971 |
| Form | 30155 |
| eClass | 27279221 |
| Printing | None |
| Protection | IP65 inserted and tightened (EN 60529) |
| Configuration | 2 contacts + PE |
| Contact figure | Cable outlet can be turned in 90° steps |
| Packaging unit | 1 |
| Mounting method | inserted, tightened |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Compression gland | M12×1.5 mm |
| Material (gasket) | NBR |
| Operating voltage | max. 250 V AC/DC |
| Temperature range | -40...+90 °C |
| country of origin | HU |
| customs tariff number | 85366990 |
| Connection cross section | max. 0.5 mm² |
| Sealing range (cable Ø) | 4...6 mm |
| Operating current per contact | max. 6 A |
| Tightening torque (clamp screw) | 0.2 ±0.1 Nm |
| Tightening torque (cable compression gland) | 1.6 ±0.2 Nm |
Product Description
SVS Eco valve plug CI-9.4mm screw terminal2-pol. + PE, max. 0,5mm², 4 -6mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
