7000-29641-0000000

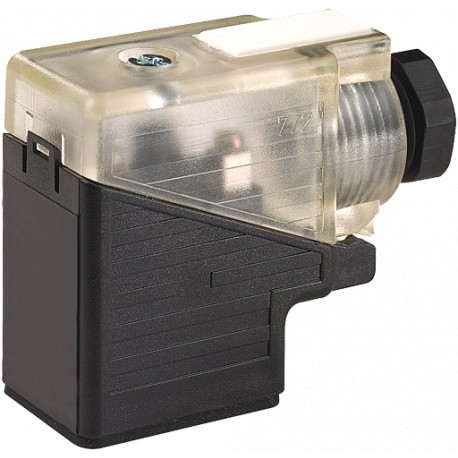

7000-29641-0000000 MURRELEKTRONIK SVS valve plug form B 10 mm field-wireable 110V LED+VDR M16x1.5
$0.00USD
3216 in stock
Key Specifications
EAN:4048879187305
Form:29641
eClass:27279221
Plug color:Black housing, transparent flip top
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879187305 |
| Form | 29641 |
| eClass | 27279221 |
| Plug color | Black housing, transparent flip top |
| Protection | IP65 inserted and tightened (EN 60529), with gland |
| LED display | (yellow) |
| Packaging unit | 1 |
| max. power (W) | max. 100 W (VA) |
| Switch off peak | max. 250 V |
| Locking of ports | M3 (recommended torque 0.4 Nm) |
| Compression gland | M16×1.5 mm |
| Operating voltage | 110 V AC/DC ±10% |
| Temperature range | -20...+60 °C |
| country of origin | CZ |
| Current consumption | approx. 12 mA |
| Switch off delay time | max. 10 ms |
| customs tariff number | 85366990 |
| Connection cross section | 1.5 mm² (with ferrule end) |
| Sealing range (cable Ø) | 5...10 mm |
| Operating current per contact | max. 1 A |
Product Description
SVS VALVE PLUG FORM B 10 MM FIELD-WIREABLE 110V LED+VDR M16x1.5
