7000-23751-4012000

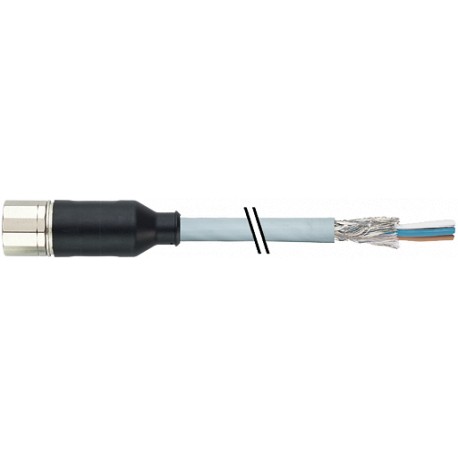

7000-23751-4012000 MURRELEKTRONIK M23 female 0° 19 pole with cable PUR 16x0,34 + 3X0.75 shielded gray, UL 20m
$0.00USD
4331 in stock
Key Specifications
AWG:similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
EAN:4048879187701
Form:23751
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| EAN | 4048879187701 |
| Form | 23751 |
| Shield | yes |
| eClass | 27279218 |
| Outer Ø | 11.7 mm ±5% |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Cable number | 401 |
| Jacket Color | gray |
| Test voltage | 2000 V AC |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Wire isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye) |
| Diameter (core) | 16× 0.34 + 3× 0.75 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300/300 V AC |
| Resistor (core) | max. 53 Ω/km (0.34 mm²); max. 26 Ω/km (0.75 mm²); (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/10042), CSA; CE conform |
| Locking of ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Compression gland | M23 (SW27) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 125 V AC/DC |
| Outer-Ø (jacket) | 11.7 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 5 Mio. |
| Cable weight [g/m] | 237,6 |
| Bend radius (fixed) | 10× outer Ø |
| Construction (core) | 42× 0.1 mm (0.34 mm²); 96× 0.1 mm (0.75 mm²); (multi-strand wire class 6) |
| chemical resistance | good resistance to oil, gasoline and chemicals (ISO 6722) |
| Bend radius (moving) | 12× outer Ø |
| Cable identification | 401 |
| optical shield cover | min. 80% |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 16× 0.34 + 3× 0.75 mm² |
| Single wire Ø (core) | 0.1 mm |
| customs tariff number | 85444290 |
| Travel speed (C-track) | max. 2 m/s |
| Shore hardness (jacket) | 94 ±5 A |
| Wire-Ø incl. isolation | 1.3 ±5% mm (0.34 mm²); 2.6 ±5% (0.75 mm²) |
| Color/numbering of wires | grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye |
| Material (wire isolation) | TPE-E |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -40...+90 °C |
| Operating current per contact | max. 10 A |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Shore hardness (wire isolation) | 55 ±5 D |
Product Description
M23 female 0° with cable shieldedPUR 0.34+0.75 shielded gy UL/CSA+drag ch. 20m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
