7000-21101-0000000

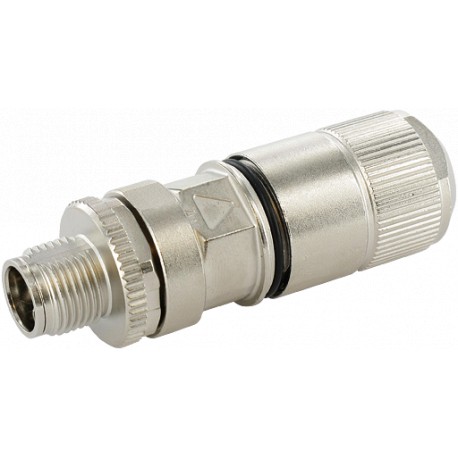

7000-21101-0000000 MURRELEKTRONIK MOSA M12 male 0° X coded (IDC)
$0.00USD
3619 in stock
Key Specifications
EAN:4048879503990
Form:21101
Coding:M12, X-coded
eClass:27279220
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879503990 |
| Form | 21101 |
| Coding | M12, X-coded |
| eClass | 27279220 |
| Housing | Brass, nickel plated |
| Weight: | 0.09 kg |
| Art.No.: | 7000-21101-0000000 |
| Standards | DIN EN 61076-2-109 (M12) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Transfer rate | 10 Gbit/s |
| Packaging unit | 1 |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -40...+85 °C |
| country of origin | TW |
| Transfer parameters | CAT6, Class EA (ISO/IEC 11801:2002), (EN 50173-1) |
| customs tariff number | 85366990 |
| Connection cross section | 0.14...0.34 mm² |
| Sealing range (cable Ø) | 5.5...9.0 mm |
| Operating current per contact | max. 0.5 A |
Product Description
M12 male 0° X-cod. IDC8-pol., AWG26-22, 5,5 - 9 mm, CAT6A
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
