7000-19301-7031000

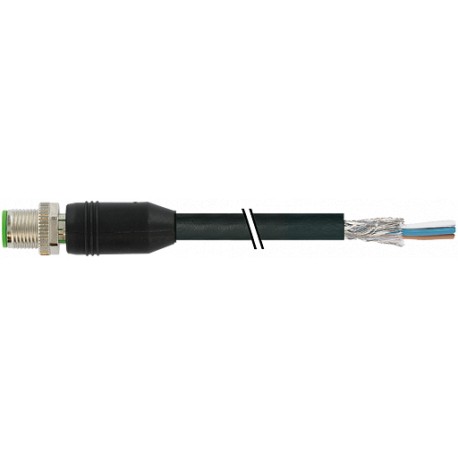

7000-19301-7031000 MURRELEKTRONIK M12 male 0° with cable PVC 12x0,14 shielded black 10m
$0.00USD
3127 in stock
Key Specifications
AWG:similar to AWG 26
EAN:4048879188883
Form:19301
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 26 |
| EAN | 4048879188883 |
| Form | 19301 |
| Shield | yes |
| eClass | 27279218 |
| Outer Ø | 6.5 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Cable Type | 1 (PVC) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | black |
| Test voltage | 2000 V |
| Color (jacket) | black |
| Packaging unit | 1 |
| Wire isolation | PVC (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| Diameter (core) | 12× 0.14 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | UL 300 V AC |
| Resistor (core) | max. 138 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 2464/173) |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Material (jacket) | PVC |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 73,70 |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Bend radius (fixed) | 10× outer Ø |
| Construction (core) | 18× 0.1 mm (multi-strand wire class 5) |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 703 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 12× 0.14 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | Twisted wires rdbl, grpk and vi, over it all other wires are twisted |
| customs tariff number | 85444290 |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.05 mm ±5% |
| Color/numbering of wires | br, rd, gr, bk, ye, pk, gn, wh, bl, rdbl, grpk, vi |
| Material (wire isolation) | PVC |
| Temperature range (fixed) | -30...+80 °C |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Temperature range (mobile) | -5...+80 °C |
| Operating current per contact | max. 1.5 A |
| Shore hardness (wire isolation) | 45 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
Product Description
M12 male 0° A-cod. with cable shieldedPVC 12x0.14 shielded bk 10m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
