7000-19061-3010750

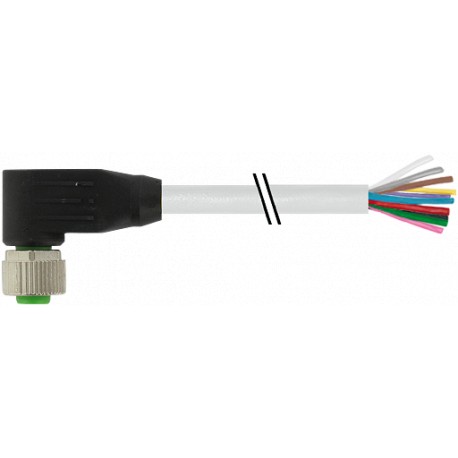

7000-19061-3010750 MURRELEKTRONIK M12 female 90° with cable PUR 12x0.25 yellow 7.5m
$0.00USD
3633 in stock
Key Specifications
AWG:similar to AWG 24
EAN:4048879292597
Form:19061
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879292597 |
| Form | 19061 |
| Shield | no |
| eClass | 27279218 |
| Outer Ø | 6.9 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | gray |
| Test voltage | 1500 V |
| Color (jacket) | gray |
| Packaging unit | 1 |
| Wire isolation | PP (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| Diameter (core) | 12× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V |
| Resistor (core) | max. 76 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 20233/10978), CSA approbation; CE |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 6.9 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| C-track properties | 3 Mio. |
| Cable weight [g/m] | 69,30 |
| Bend radius (fixed) | 10× outer Ø |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Bend radius (moving) | 15× outer Ø |
| Cable identification | 301 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 12× 0.25 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | Twisted wires rdbl, grpk and vi, over it all other wires are twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 10 m/s² |
| Travel speed (C-track) | max. 2 m/s |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, rd, gr, bk, ye, pk, gn, wh, bl, rdbl, grpk, vi |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -20...+80 °C |
| Operating current per contact | max. 1.5 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 3 Mio. (25 °C) |
| Shore hardness (wire isolation) | 50 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
Product Description
M12 female 90° A-cod. with cablePUR 12x0.25 gy UL/CSA+drag ch. 7.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
