7000-17081-2861500

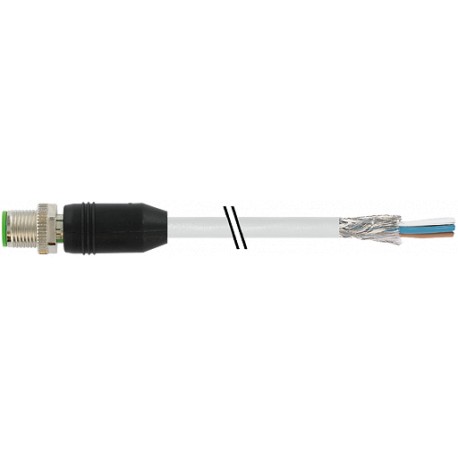

7000-17081-2861500 MURRELEKTRONIK M12 male 0° with cable PUR (4x(2x0.25))C shielded gray 15m
$0.00USD
4975 in stock
Key Specifications
AWG:similar to AWG 24
EAN:4048879596350
Form:17081
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879596350 |
| Form | 17081 |
| Coding | A-coded |
| Shield | yes |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 7.1 mm ±5% |
| Protection | IP65 inserted and tightened (EN 60529) |
| Cable number | 286 |
| Jacket Color | gray |
| Test voltage | 1500 V AC |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PP (wh, br, gn, ye, gr, pk, bl, rd) |
| Diameter (core) | 4× 2× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Approval (cable) | CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | TPU |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 7.1 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | CZ |
| Cable weight [g/m] | 74,80 |
| thermal resistance | flame retardant EN 60332-1 |
| Bend radius (fixed) | 7.5× outer Ø |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 15× outer Ø |
| Cable identification | 286 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 4× 2× 0.25 mm² |
| Single wire Ø (core) | 0.1 mm |
| customs tariff number | 85444290 |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.2 mm ±5% |
| Color/numbering of wires | br, wh, rd, bl, pk, gr, ye, gn |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -5...+90 °C |
| Operating current per contact | max. 2 A |
| Shore hardness (wire isolation) | 65 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
Product Description
M12 male 0° A-cod. with cable shieldedPUR 4x2x0.25 shielded gy 15m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
