7000-15501-8310100

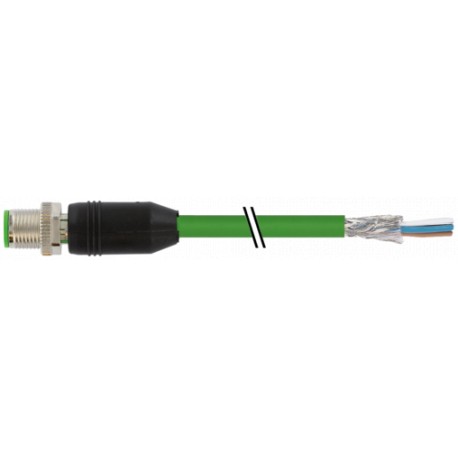

7000-15501-8310100 MURRELEKTRONIK M12 male 0° Y-cod. with cable shieldedPUR AWG20/26 shielded gn UL/CSA+drag..
$0.00USD
4561 in stock
Key Specifications
Weight::0.127 kg
Art.No.::7000-15501-8310100
Country of origin::CZ
Model designation::MSYAL0-08D831_1.0-ZS
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Weight: | 0.127 kg |
| Art.No.: | 7000-15501-8310100 |
| Country of origin: | CZ |
| Model designation: | MSYAL0-08D831_1.0-ZS |
| Coding (Technical Data) | Y |
| Thread (Technical Data) | M12 x 1 |
| duplex (Technical Data) | Full duplex |
| Material (Technical Data) | PUR |
| Cable length (Technical Data) | 1 m |
| Cable outlet (Technical Data) | straight |
| Mounting set (Technical Data) | M12 x 1 |
| No. of poles (Technical Data) | 8 |
| Configuration (Technical Data) | fully used |
| Coating locking (Technical Data) | Nickeled |
| Mounting method (Technical Data) | inserted, screwed, Shaking protection |
| Locking material (Technical Data) | Zinc die-casting |
| Pollution Degree (Technical Data) | 3 |
| Product standard (Technical Data) | DIN EN 61076-2-101 (M12) |
| Tightening torque (Technical Data) | 0,6 Nm |
| Coating of fitting (Technical Data) | nickel plated |
| Width across flats (Technical Data) | SW13 |
| Rated surge voltage (Technical Data) | 0,8 kV |
| Transfer parameters (Technical Data) | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| Note on strain relief (Technical Data) | Protect the connectors by suitable measures from mechanical loads, e.g. by the usage of cable ties. |
| Status indication LED (Technical Data) | no |
| Note on bending radius (Technical Data) | Attention:Observe the permissible bending radii when laying cables, as the IP protection class can be endangered by excessive bending forces. |
| Family construction form (Technical Data) | free cable end |
| Material screw connection (Technical Data) | Zinc die-casting |
| Operating voltage AC max. (Technical Data) | 50 V |
| Operating voltage DC max. (Technical Data) | 50 V |
| Stripping length (jacket) (Technical Data) | 80 mm |
| Operating temperature max. (Technical Data) | 85 °C |
| Operating temperature min. (Technical Data) | -25 °C |
| Contour for corrugated hose (Technical Data) | without |
| Data transmission rate max. (Technical Data) | 100 MBit/s |
| Material group (IEC 60664-1) (Technical Data) | I |
| Operating voltage AC (UL-listed) (Technical Data) | 30 V |
| Operating voltage DC (UL-listed) (Technical Data) | 30 V |
| Current operating per contact (UL) (Technical Data) | 3,3 A |
| Degree of protection (EN IEC 60529) (Technical Data) | IP67 |
| Additional condition protection degree (Technical Data) | inserted, screwed |
| Additional condition temperature range (Technical Data) | depending on cable quality |
| Operating current per data contact max. (Technical Data) | 0,5 A |
| Operating current per power contact max. (Technical Data) | 6 A |
Product Description
M12 male 0° Y-cod. with cable shielded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
