7000-14641-6590200

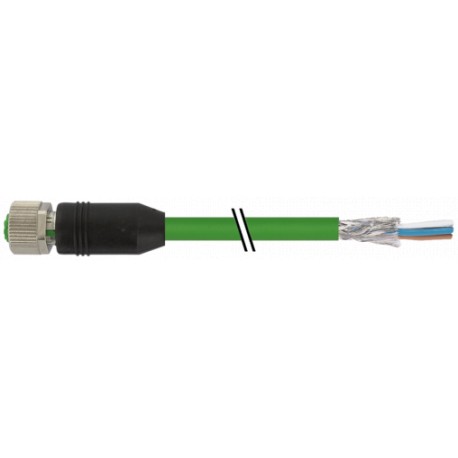

7000-14641-6590200 MURRELEKTRONIK M12 female 0° shielded, D-cod. with cable EN PUR 2x2xAWG22 shielded gn UL/..
$0.00USD
4609 in stock
Key Specifications
AWG:similar to AWG 22
Form:14641
Coding:D-coded
Shield:yes
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 |
| Form | 14641 |
| Coding | D-coded |
| Shield | yes |
| Material | PUR |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Cable length | 2 m |
| Shield (Type) | Copper braid |
| Transfer rate | up to 100 Mbit/s full duplex |
| Color (jacket) | green |
| Material group | IEC 60664-1, category I |
| Diameter (core) | 1× 4× AWG22/7 |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 600 V |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 22009/10988); CE |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR |
| Operating voltage | max. 60 V DC |
| Outer-Ø (jacket) | 7.4 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| Cable weight [g/m] | 89,1 g |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 1.5 kV |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 12× outer Ø |
| Cable identification | 659 |
| optical shield cover | min. 85% |
| Acceleration (C-track) | max. 2 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Wire-Ø incl. isolation | 1.4 mm ±5% |
| Color/numbering of wires | wh, ye, bl, or |
| Material (wire isolation) | PE |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -30...+70 °C |
| Operating current per contact | max. 4 A |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
| Operating voltage (only UL listed) | max. 30 V DC |
| Product article number of manufacturer | 7000-14641-6590200 |
Product Description
M12 female 0° D-cod. with cable shielded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
