7000-14621-0000000

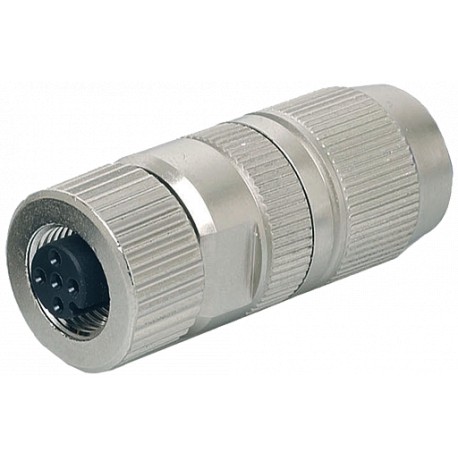

7000-14621-0000000 MURRELEKTRONIK MOSA M12 FEMALE 0° FIELD-WIREABLE (IDC)
$0.00USD
4417 in stock
Key Specifications
EAN:4048879197229
Form:14621
Coding:M12, D-coded
eClass:27279221
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879197229 |
| Form | 14621 |
| Coding | M12, D-coded |
| eClass | 27279221 |
| Weight: | 0.054 kg |
| Art.No.: | 7000-14621-0000000 |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Transfer rate | up to 100 Mbit/s full duplex |
| Packaging unit | 1 |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread M12 × 1 mm (recommended torque 0.6 Nm) self-securing |
| Operating voltage | max. 50 V AC/DC |
| Temperature range | -40...+85 °C |
| country of origin | DE |
| Transfer parameters | CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1) |
| customs tariff number | 85366990 |
| Connection cross section | 0.14...0.34 mm² (AWG 26...22) |
| Sealing range (cable Ø) | 4.5...8.8 mm |
| Operating current per contact | max. 4 A |
Product Description
M12 female 0° D-cod. IDC4-pol., 0,14 - 0,34mm², 4,5 - 8,8mm, shielded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
