7000-14101-9740050

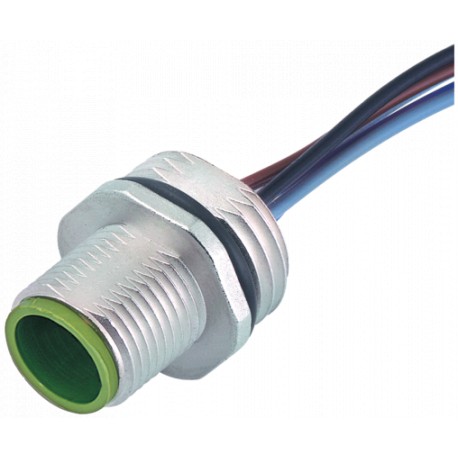

7000-14101-9740050 MURRELEKTRONIK M12 male recept. B-cod. frontPP-wires 4x0.34 0.5m
$0.00USD
4091 in stock
Key Specifications
Form:14101
Coding:B-coded
Outer Ø:1.25 mm ±5%
Protection:IP67 inserted and tightened (EN 60529)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 14101 |
| Coding | B-coded |
| Outer Ø | 1.25 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable length | 0,5 m |
| Cable number | 974 |
| No. of poles | 4 |
| Material group | IEC 60664-1, category I |
| Wire isolation | PP (br, wh, bl, bk) |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW14) |
| Operating voltage | max. 250 V AC/DC |
| Temperature range | -25...+80 °C |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 2.5 kV |
| Bend radius (moving) | 10× outer Ø |
| No./diameter of wires | 4× 0.34 mm² |
| Temperature range (fixed) | -40...+80 °C |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| Product article number of manufacturer | 7000-14101-9740050 |
Product Description
M12 male recept. B-cod. front
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
