In Stock Hot Product
7000-13565-9720200

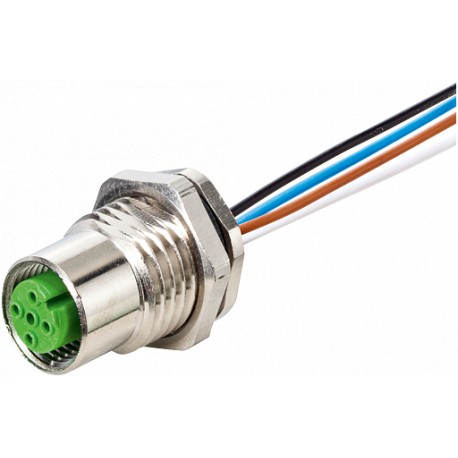

7000-13565-9720200 MURRELEKTRONIK M12 female receptacle A-cod. rear mount PP 5x0.34 2m
$0.00USD
3759 in stock
Key Specifications
AWG:max. 58 Ω/km (20 °C)
EAN:4048879620000
Form:13565
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | max. 58 Ω/km (20 °C) |
| EAN | 4048879620000 |
| Form | 13565 |
| Coding | A-coded |
| eClass | 27279220 |
| Material | Brass, nickel plated |
| Outer Ø | 1.3 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 972 |
| Test voltage | 1500 V AC |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PUR (br, wh, bl, bk, gr) |
| Material (wire) | Cu wire, tin plated |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V AC |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW14) |
| Material (gasket) | FKM |
| Operating voltage | max. 125 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Material (contact) | Copper alloy |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 1.5 kV |
| No./diameter of wires | 5× 0.34 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+90 °C |
| Material (contact surface) | Au |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 4 A |
| suitable for corrugated tube (internal Ø) | without |
Product Description
M12 female recept. A-cod. rearPP-wires 5x0.34 2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
