In Stock Hot Product
7000-13402-0000000

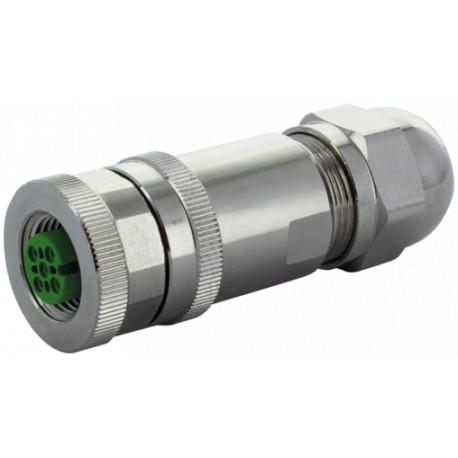

7000-13402-0000000 MURRELEKTRONIK M12 female 0° A-cod. screw terminal5-pol., max. 0.75mm², 6 8mm, shielded
$0.00USD
3814 in stock
Key Specifications
Form:13402
Coding:A-coded
Shielded:Shielded
Connection:Screw terminal
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 13402 |
| Coding | A-coded |
| Shielded | Shielded |
| Connection | Screw terminal |
| Protection | IP67 inserted and tightened (EN 60529) |
| No. of poles | 5-pole |
| Locking material | Copper alloy |
| Pollution Degree | 3 |
| Compression gland | M12 (0.6 Nm, SW18) |
| Operating voltage | max. 60 V |
| Temperature range | -40...+85 °C |
| Material (contact) | Copper alloy |
| Material (housing) | Copper alloy |
| Over voltage category | II |
| Connection cross section | max. 0.75 mm² |
| Sealing range (cable Ø) | 6...8 mm |
| Material (contact surface) | gold plated |
| Operating current per contact | max. 4 A |
| Product article number of manufacturer | 7000-13402-0000000 |
Product Description
M12 female 0° A-cod. screw terminal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
