7000-13201-3310060

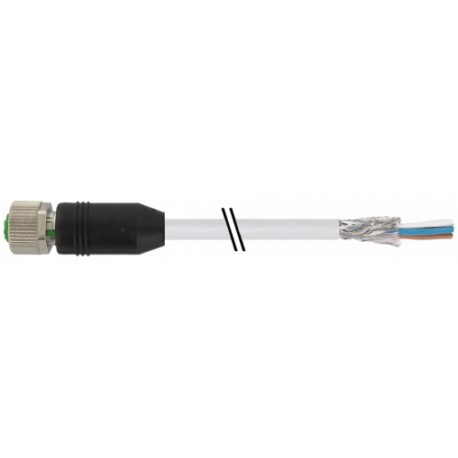

7000-13201-3310060 MURRELEKTRONIK M12 female 0° shielded with cable PUR 4x0.34 shielded gy 0,6m
$0.00USD
4077 in stock
Key Specifications
Form:13201
Coding:A-coded
Shield:yes
Material:PUR
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 13201 |
| Coding | A-coded |
| Shield | yes |
| Material | PUR |
| Outer Ø | 5.9 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Cable length | 0,6 m |
| Cable number | 331 |
| Jacket Color | gray |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Wire isolation | PVC (br, wh, bl, bk) |
| Approval (cable) | CE conform |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR/PVC |
| Operating voltage | max. 60 V AC/DC |
| Temperature range | -25...+85 °C, depending on cable quality |
| Bend radius (fixed) | 10× outer Ø |
| Rated surge voltage | 1.5 kV |
| Bend radius (moving) | 15× outer Ø |
| No./diameter of wires | 4× 0.34 mm² |
| Temperature range (fixed) | -30...+80 °C |
| Temperature range (mobile) | -5...+70 °C |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| Product article number of manufacturer | 7000-13201-3310060 |
Product Description
M12 female 0° A-cod. with cable shielded
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
* only for products with UL/CSA approved cable
