7000-12762-0000000

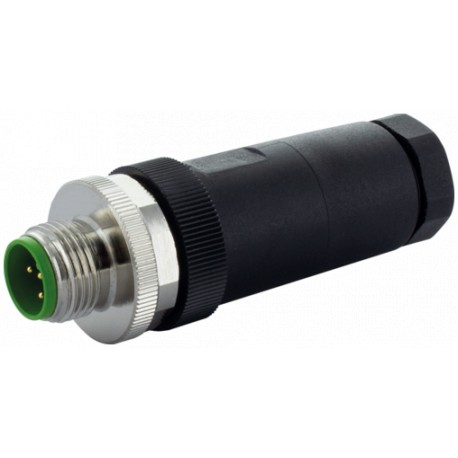

7000-12762-0000000 MURRELEKTRONIK M12 male 0° A-cod. screw terminal5-pol., max. 0.75mm², 6 8mm
$0.00USD
3745 in stock
Key Specifications
Form:12762
Protection:IP67 in mounted and screwed state according to (EN 60529)
Cable glands:M12 (0.6 Nm, SW18)
Codification:Encoded A
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 12762 |
| Protection | IP67 in mounted and screwed state according to (EN 60529) |
| Cable glands | M12 (0.6 Nm, SW18) |
| Codification | Encoded A |
| Connection type | Screw terminal |
| Number of poles | 5 poles |
| Locking material | Copper alloy |
| Voltage category | Ii |
| Matrial (housing) | PBT GF |
| Operating voltage | .max. 60 V |
| Temperature range | -40...+85 °C |
| Contact resistance | ≤ 8 mΩ |
| Material (contact) | Copper alloy |
| Connection diameter | .max. 0.75 mm² |
| Insulation resistance | ≥ 100 MΩ |
| Degree of contamination | 3 |
| Clamping range (Ø cable) | 6...8 mm |
| Material (contact surface) | Gold plating |
| Working current by contact | Max. 4 A |
| Product article number of manufacturer | 7000-12762-0000000 |
Product Description
M12 male 0° A-cod. screw terminal
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
