In Stock Hot Product
7000-12361-6470150

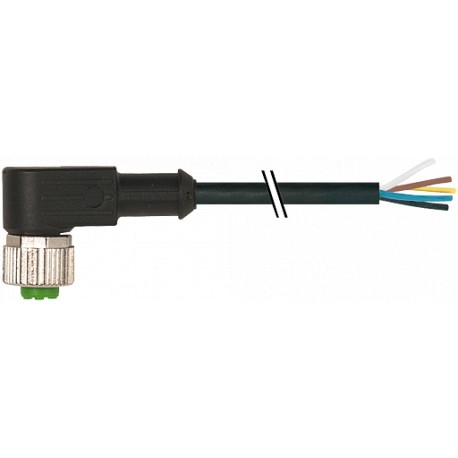

7000-12361-6470150 MURRELEKTRONIK M12 female 90° with cable PUR 5X0.34 black UL/CSA, drag chain 1.5m
$0.00USD
3006 in stock
Key Specifications
AWG:similar to AWG 22
EAN:4048879637145
Form:12361
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879637145 |
| Form | 12361 |
| Coding | A-coded |
| Shield | no |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 5.6 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Cable Type | 3 (PUR) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Jacket Color | black |
| Test voltage | 2000 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | black |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±180°/m |
| Wire isolation | PP (br, wh, bl, bk, gnye) |
| Diameter (core) | 5× 0.34 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 600 V AC |
| Resistor (core) | max. 60 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 21223/10492), CSA |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA) |
| Operating voltage | max. 125 V AC/DC |
| Outer-Ø (jacket) | 5.6 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | CZ |
| C-track properties | 5 Mio. |
| Cable weight [g/m] | 44,55 |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 / IEC 60332-1, IEC 60332-2-2 |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 1.5 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 647 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 2 Mio. (25 °C) |
| No./diameter of wires | 5× 0.34 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 5 wires twisted around central filler |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Shore hardness (jacket) | 90 ±5 A |
| Wire-Ø incl. isolation | 1.45 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh, gnye longitudinally striped |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 5 Mio. (25 °C) |
| Shore hardness (wire isolation) | 65 ±5 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | max. 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | 10 mm |
Product Description
M12 female 90° A-cod. with cablePUR 5x0.34 bk UL/CSA+drag ch. 1.5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
