In Stock Hot Product
7000-12231-2540500

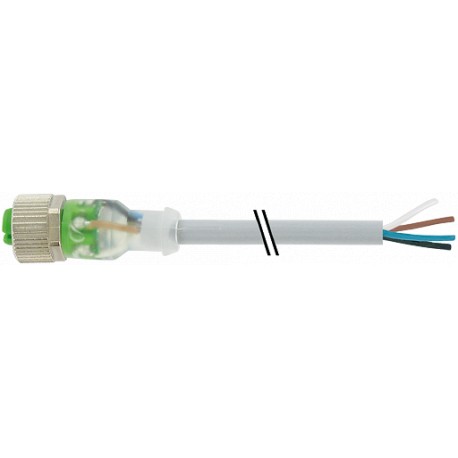

7000-12231-2540500 MURRELEKTRONIK M12 female 0° with cable LED PUR 4x0.34 gray UL/CSA + robot + drag chain 5m
$0.00USD
4376 in stock
Key Specifications
AWG:similar to AWG 22
EAN:4048879631242
Form:12231
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 22 |
| EAN | 4048879631242 |
| Form | 12231 |
| Coding | A-coded |
| Shield | no |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 4.7 mm ±5% |
| Standards | DIN EN 61076-2-101 (M12) |
| Cable Type | 5 (PUR schweißfunkenbeständig) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| LED display | green, yellow, white |
| Jacket Color | gray |
| No. of poles | 4 |
| Test voltage | 2500 V AC |
| Torsion speed | 35 cycles/min |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Torsion stress | ±360°/m |
| Wire isolation | PP (br, wh, bl, bk) |
| Diameter (core) | 4× 0.34 mm² |
| Material (wire) | Cu wire, bare |
| Nominal voltage | 300 V AC |
| Resistor (core) | max. 60 Ω/km (20 °C) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Locking material | Zinc die casting, save-cover coated |
| Locking of ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M12 (SW13) |
| Material (jacket) | PUR (UL/CSA), welding spark |
| Operating voltage | 24 V DC ±25% |
| Outer-Ø (jacket) | 4.7 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | CZ |
| C-track properties | 10 Mio. |
| Cable weight [g/m] | 36,30 |
| thermal resistance | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Rated surge voltage | 0.8 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 254 |
| Current load capacity | to DIN VDE 0298-4 |
| No. of torsion cycles | max. 1 Mio. (25 °C) |
| No./diameter of wires | 4× 0.34 mm² |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 4 wires twisted |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 5 m/s² |
| Travel speed (C-track) | max. 3.3 m/s |
| Shore hardness (jacket) | 58 ±3 D |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl, wh |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -40...+80 °C |
| Material property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| Temperature range (mobile) | -25...+80 °C |
| Operating current per contact | max. 4 A |
| Traversing distance (C-track) | max. 5 m (horizontal) |
| No. of bending cycles (C-track) | max. 10 Mio. (25 °C) |
| Shore hardness (wire isolation) | 74 ±3 D |
| Material property (wire isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | 30V DC |
Product Description
M12 female 0° A-cod. with cable 3LEDPUR 4x0.34 gy UL/CSA+robot+drag ch. 5m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
