7000-10121-0000000

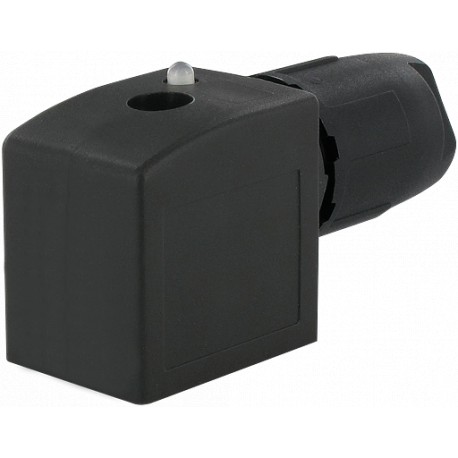

7000-10121-0000000 MURRELEKTRONIK MOSA VALVE PLUG FORM B 10 MM FIELD-WIREABLE (IDC)
$0.00USD
3399 in stock
Key Specifications
EAN:4048879222556
Form:10121
eClass:27279221
Weight::0.036 kg
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879222556 |
| Form | 10121 |
| eClass | 27279221 |
| Weight: | 0.036 kg |
| Art.No.: | 7000-10121-0000000 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Mounting set | M16 × 1 mm |
| Outer wire Ø | 1.6...2.0 mm |
| Packaging unit | 1 |
| Switch off peak | max. 53 V |
| Operating voltage | 24 V AC/DC ±25% |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 28×21×55 mm |
| Connection cross section | 0.5...1.0 mm² (conductor diameter min. 0.1 mm) |
| Sealing range (cable Ø) | 5.5...8 mm |
| Operating current per contact | max. 6 A |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
