7000-08931-6960150

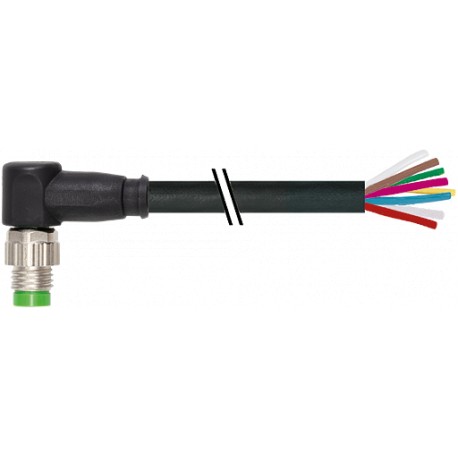

7000-08931-6960150 MURRELEKTRONIK M8 male 90° with cable PUR 8x0.14 black 1,5m
$0.00USD
4231 in stock
Key Specifications
AWG:similar to AWG 14
EAN:4048879745161
Form:08931
Coding:A-coded
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 14 |
| EAN | 4048879745161 |
| Form | 08931 |
| Coding | A-coded |
| Shield | no |
| eClass | 27279218 |
| Material | TPU |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Jacket Color | black |
| No. of poles | 8 |
| Test voltage | 3000 V AC |
| Mating cycles | ≥ 100 |
| Color (jacket) | black |
| Packaging unit | 1 |
| Diameter (core) | 8× 0.14 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | 300 V |
| Resistor (core) | max. 78 Ω/km (20 °C) |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3/2 |
| Compression gland | M8 (SW9) |
| Material (jacket) | PUR |
| Operating voltage | max. 30 V AC/DC |
| Outer-Ø (jacket) | 5.5 mm ±5% |
| Temperature range | -25...+80 °C |
| country of origin | DE |
| Material (contact) | Copper alloy |
| Construction (core) | 18× 0.1 mm (multi-strand wire class 6) |
| Bend radius (moving) | 6× outer Ø |
| Cable identification | 696 |
| Single wire Ø (core) | 0.1 mm |
| Stranding combination | 8 wires twisted around central filler |
| customs tariff number | 85444290 |
| Acceleration (C-track) | max. 10 m/s² |
| Travel speed (C-track) | max. 5 m/s |
| Wire-Ø incl. isolation | 1.07 mm ±5% |
| Material (wire isolation) | PP |
| Temperature range (fixed) | -30...+80 °C |
| Material (contact surface) | Au |
| Temperature range (mobile) | -15...+80 °C |
| Operating current per contact | max. 1.5 A |
| No. of bending cycles (C-track) | max. 2 Mio. (25 °C) |
Product Description
M8 male 90° with cable
