In Stock Hot Product
7000-08621-0000000

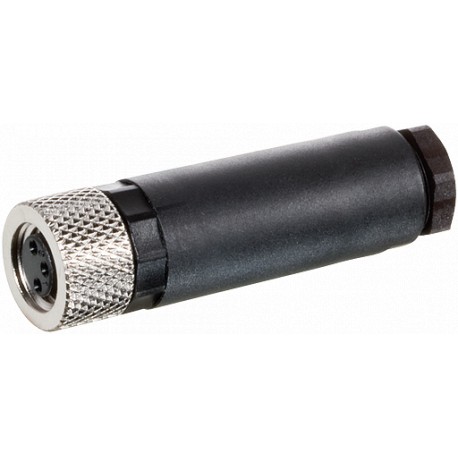

7000-08621-0000000 MURRELEKTRONIK M8 female 0° field-wireable screw terminals 3-pol. 0,14…0.5mm²
$0.00USD
3047 in stock
Key Specifications
EAN:4048879224512
Form:08621
eClass:27279221
Protection:IP67 inserted and tightened (EN 60529)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879224512 |
| Form | 08621 |
| eClass | 27279221 |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material group | III |
| Packaging unit | 1 |
| Pollution Degree | 3 |
| Operating voltage | max. 60 V |
| Temperature range | -40...+85 °C |
| country of origin | DE |
| Dimensions H×W×D | 45×12×12 mm |
| Material (contact) | Brass, gold plated |
| Material (housing) | PA |
| Rated surge voltage | 1.5 kV |
| Over voltage category | III |
| customs tariff number | 85366990 |
| Connection cross section | 0.14...0.5 mm² |
| Sealing range (cable Ø) | 2.5...5.0 mm |
| Operating current per contact | max. 4 A |
| Operating voltage (only UL listed) | 30 V |
Product Description
M8 female 0° A-cod. screw terminal3-pol., 0,14 - 0.5mm², 2,5 - 5mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
