In Stock Hot Product
7000-08573-9700020

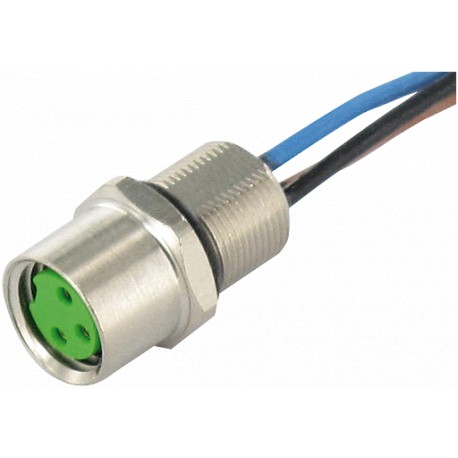

7000-08573-9700020 MURRELEKTRONIK M8 female receptacle front incl. nut PP 3x0.25 0.2m
$0.00USD
3688 in stock
Key Specifications
EAN:4048879508179
Form:08573
eClass:27279220
Outer Ø:1.1 mm ±5%
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879508179 |
| Form | 08573 |
| eClass | 27279220 |
| Outer Ø | 1.1 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable number | 970 |
| No. of poles | 3 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PP (br, bk, bl) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW10) |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 1.5 kV |
| No./diameter of wires | 3× 0.25 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 4 A |
Product Description
M8 female recept. A-cod. front incl. nutPP-wires 3x0.25 0.2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
