7000-08571-9100020

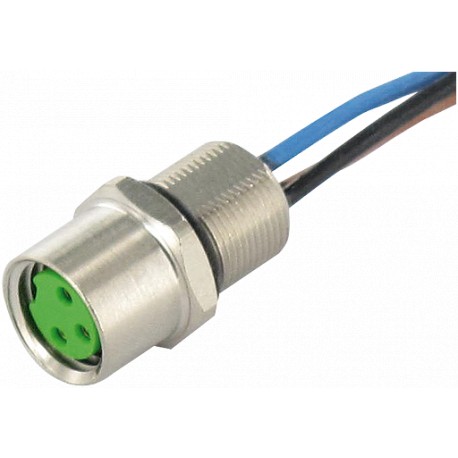

7000-08571-9100020 MURRELEKTRONIK M8 female receptacle front mount 3x0.25 0,2m
$0.00USD
4659 in stock
Key Specifications
EAN:4048879621212
Form:08571
eClass:27279220
Material:Brass, nickel plated
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879621212 |
| Form | 08571 |
| eClass | 27279220 |
| Material | Brass, nickel plated |
| Outer Ø | 1.15 mm ±5% |
| Standards | DIN EN 61076-2-104 (M8) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Cable number | 910 |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC (br, bl, bk) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW10) |
| Material (gasket) | FKM |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 1.5 kV |
| No./diameter of wires | 3× 0.25 mm² |
| customs tariff number | 85444290 |
| Temperature range (fixed) | -40...+105 °C |
| Temperature range (mobile) | -5...+105 °C |
| Operating current per contact | max. 4 A |
Product Description
M8 female recept. A-cod. frontPVC-wires 3xAWG24/7 0.2m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
