7000-08563-9690200

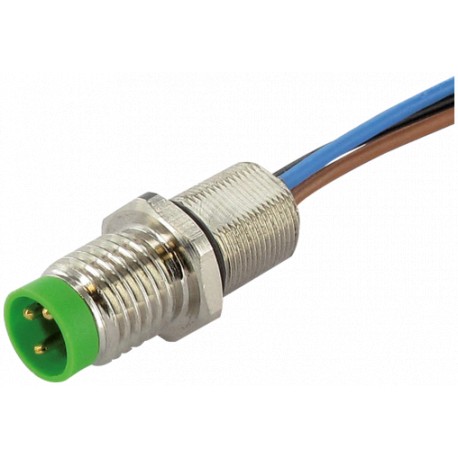

7000-08563-9690200 MURRELEKTRONIK M8 male recept. A-cod. front incl. nutPP-wires 4x0.25 2m
$0.00USD
3794 in stock
Key Specifications
Form:08563
Outer Ø:1.1 mm ±5%
Protection:IP67 inserted and tightened (EN 60529)
LED display:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Form | 08563 |
| Outer Ø | 1.1 mm ±5% |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Cable length | 2 m |
| Cable number | 969 |
| No. of poles | 4 |
| Material group | IEC 60664-1, category I |
| Wire isolation | PP (br, bk, bl, wh) |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Locking material | Brass, nickel plated |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW10) |
| Operating voltage | max. 50 V AC/60 V DC |
| Temperature range | -25...+85 °C |
| Bend radius (fixed) | 5× outer Ø |
| Rated surge voltage | 1.5 kV |
| No./diameter of wires | 4× 0.25 mm² |
| Temperature range (fixed) | -40...+90 °C |
| Temperature range (mobile) | -25...+90 °C |
| Operating current per contact | max. 4 A |
| Product article number of manufacturer | 7000-08563-9690200 |
Product Description
M8 male recept. A-cod. front incl. nut
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
