7000-08371-0000000

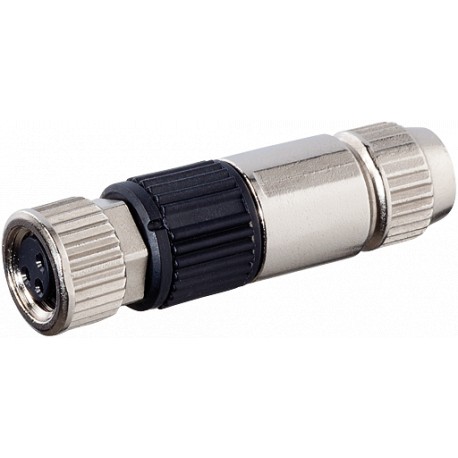

7000-08371-0000000 MURRELEKTRONIK MOSA M8 FEMALE 0° FIELD-WIREABLE (IDC)
$0.00USD
3849 in stock
Key Specifications
EAN:4048879224697
Form:08371
eClass:27279221
Material:PA
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879224697 |
| Form | 08371 |
| eClass | 27279221 |
| Material | PA |
| Standards | DIN EN 61076-2-104 (M8) |
| Connection | Insulation displacement technology IDC |
| Protection | IP67 inserted and tightened (EN 60529) |
| No. of poles | 3 |
| Configuration | fully used |
| Mating cycles | ≥ 100 |
| Outer wire Ø | 1.0...1.6 mm |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC, PP, TPE |
| Mounting method | inserted, tightened |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW9) |
| Operating voltage | max. 32 V AC/DC |
| Temperature range | -25...+85 °C |
| country of origin | DE |
| Contact resistance | ≤ 10 mΩ |
| Dimensions H×W×D | 42.5×11.8×11.8 mm |
| Material (contact) | Copper alloy |
| Rated surge voltage | 0.8 kV |
| Isolation resistance | ≥ 10^8 Ω |
| Reconnection (cable) | 10 |
| Over voltage category | 3 |
| customs tariff number | 85366990 |
| Connection cross section | 0.14...0.34 mm² (conductor diameter min. 0.1 mm) |
| Sealing range (cable Ø) | 2.5...5.1 mm (gasket included) |
| Operating current per contact | max. 4 A |
Product Description
M8 female 0° A-cod. IDC3-pol., 0,14 - 0,34mm², 2,5 - 5,1mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
