7000-08345-0000000

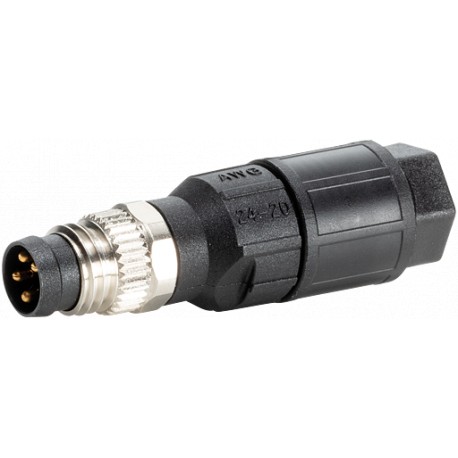

7000-08345-0000000 MURRELEKTRONIK MOSA M8 male 0° field-wireable (IDC) 3-pol., 0,25-0,5mm²
$0.00USD
4570 in stock
Key Specifications
EAN:4048879784696
eClass:27279221
Material:PA
Standards:DIN EN 61076-2-104 (M8)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879784696 |
| eClass | 27279221 |
| Material | PA |
| Standards | DIN EN 61076-2-104 (M8) |
| Connection | IDC terminal |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| No. of poles | 4 |
| Mating cycles | ≥ 100 |
| Outer wire Ø | 1.1...1.55 mm |
| Packaging unit | 1 |
| Wire isolation | PVC, PE, PP, rubber |
| Mounting method | inserted, tightened |
| Locking material | Zinc die casting, matte nickel plated |
| Pollution Degree | 3 |
| Compression gland | Hexagonal screw/nut |
| Material (gasket) | NBR |
| Operating voltage | 30 V AC/DC |
| Temperature range | -25...+80 °C |
| country of origin | DE |
| Material (contact) | Copper alloy |
| Isolation resistance | ≥ 100 MΩ |
| Reconnection (cable) | 10 |
| Over voltage category | 2 |
| customs tariff number | 85366990 |
| Connection cross section | 0.25...0.5 mm² |
| Sealing range (cable Ø) | 2.5...5.0 mm |
| Material (contact carrier) | TPU |
| Material (contact surface) | Au |
| Operating current per contact | max. 4 A |
Product Description
M8 male 0° A-cod. IDC4-pol., 0,25 - 0,5mm², 2,5 - 5mm
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
