7000-08081-2102000

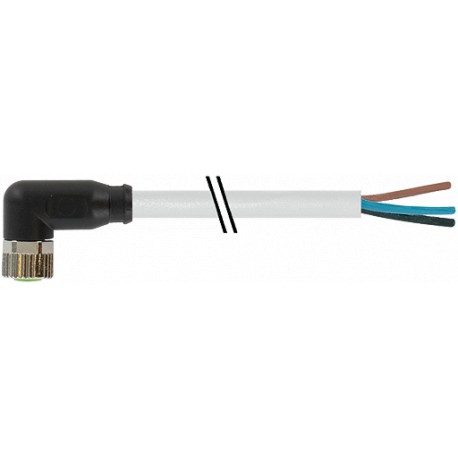

7000-08081-2102000 MURRELEKTRONIK M8 female 90° with cable PVC 3x0.25 gray UL/CSA 20m
$0.00USD
3999 in stock
Key Specifications
AWG:similar to AWG 24
EAN:4048879228800
Form:08081
Shield:no
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| AWG | similar to AWG 24 |
| EAN | 4048879228800 |
| Form | 08081 |
| Shield | no |
| eClass | 27279218 |
| Material | PUR |
| Outer Ø | 4.5 mm ±5% |
| Standards | DIN EN 61076-2-104 (M8) |
| Cable Type | 1 (PVC) |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| LED display | no |
| Jacket Color | gray |
| No. of poles | 3 |
| Test voltage | 2000 V AC |
| Color (jacket) | gray |
| Material group | IEC 60664-1, category I |
| Packaging unit | 1 |
| Wire isolation | PVC (br, bl, bk) |
| Diameter (core) | 3× 0.25 mm² |
| Material (wire) | Cu wire, bare |
| Mounting method | inserted, tightened |
| Nominal voltage | UL 300 V AC |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Approval (cable) | UL (AWM-Style 2464/1731), CSA |
| Locking material | Zinc die casting, matte nickel plated |
| Locking of ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Pollution Degree | 3 |
| Compression gland | M8 (SW9) |
| Material (gasket) | FKM |
| Material (jacket) | PVC |
| Operating voltage | max. 50 V AC/60 V DC |
| Outer-Ø (jacket) | 4.5 mm ±5% |
| Temperature range | -25...+85 °C, depending on cable quality |
| country of origin | DE |
| Cable weight [g/m] | 29,37 |
| Material (contact) | Copper alloy |
| thermal resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Bend radius (fixed) | 5× outer Ø |
| Construction (core) | 14× 0.15 mm (multi-strand wire class 5) |
| Rated surge voltage | 1.5 kV |
| chemical resistance | good resistance to oil, gasoline and chemicals |
| Bend radius (moving) | 10× outer Ø |
| Cable identification | 210 |
| Current load capacity | to DIN VDE 0298-4 |
| No./diameter of wires | 3× 0.25 mm² |
| Single wire Ø (core) | 0.15 mm |
| Stranding combination | 3 wires twisted |
| customs tariff number | 85444290 |
| Shore hardness (jacket) | 85 ±5 A |
| Wire-Ø incl. isolation | 1.25 mm ±5% |
| Color/numbering of wires | br, bk, bl |
| Material (wire isolation) | PVC |
| Stripping length (jacket) | 20 mm |
| Temperature range (fixed) | -30...+80 °C |
| Material (contact surface) | Au |
| Material property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Temperature range (mobile) | -5...+80 °C |
| Operating current per contact | max. 4 A |
| Shore hardness (wire isolation) | 45 ±5 D |
| Material property (wire isolation) | CFC-, cadmium-, silicone- and lead-free |
| Operating voltage (only UL listed) | 30 V AC/DC |
| suitable for corrugated tube (internal Ø) | 6.5 mm |
Product Description
M8 female 90° with cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
