6SL3210-1NE31-5UL0

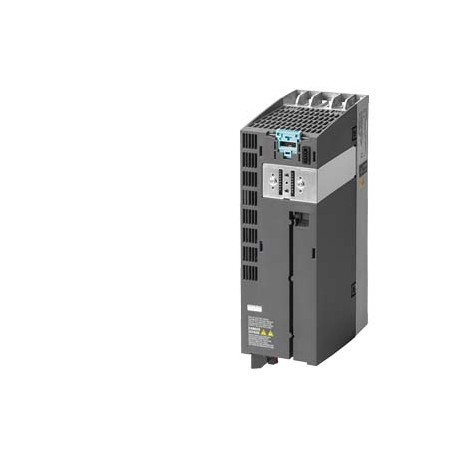

6SL3210-1NE31-5UL0 SIEMENS SINAMICS G120 POWER MODULE PM230 UNFILTERED PROTECTION IP20 3AC380-480V +10/-10% ..
$0.00USD
4347 in stock
Key Specifications
:Value
EAN:4042948660317
UPC:887621713218
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4042948660317 |
| UPC | 887621713218 |
| ETIM | 4 |
| IDEA | 4 |
| Notes | Sucessor:The successor is 6SL3210-1RE31-5UL0 PM240P-2 FSF unfiltered 75 kW. |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R220 |
| Price Group | 347 |
| Metal Factor | None |
| Product Group | 5678 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85044088 |
| Product family | PM230 Power Modules |
| Net Weight (kg) | 33,000 Kg |
| Depth (EF000049) | 316.0 |
| Width (EF000008) | 350.0 |
| Country of origin | Germany |
| Height (EF000040) | 634.0 |
| LKZ_FDB/ CatalogID | D11.1SD |
| PLM Effective Date | Product phase-out since: 01.12.2017 |
| Packaging Quantity | 1 |
| Packaging Dimension | 400,00 x 1200,00 x 718,00 |
| Product Description | SINAMICS G120 POWER MODULE PM230 UNFILTERED PROTECTION IP20 3AC380-480V +10/-10% 47-63HZ OUTPUT LOW OVERLOAD: 75KW FOR 110% 60S,100% 240S AMBIENT TEMP 0 TO +40 DEG C(LO) 634 X 350 X 316 (HXWXD), FSF WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU240B/E-2 AND CU230P-2 FIRMWARE-VERSION V4.4 NOTE: PM230 DOES NOT SUPPORT SAFETY |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Mains voltage (EF006780) | ['380', '480'] |
| Export Control Regulations | AL : N / ECCN : 3A999A |
| Mains frequency (EF006783) | - |
| Standard lead time ex-works | 25 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | MM |
| Type of converter (EF006978) | U converter |
| With control unit (EF001538) | false |
| With PC connection (EF006107) | - |
| Max. output voltage (EF009560) | - |
| Product Dimensions (W x L x H) | Not available |
| Max. output frequency (EF007350) | 550 |
| Number of phases input (EF007117) | 3 |
| With optical interface (EF003028) | - |
| Number of phases output (EF006998) | 3 |
| Number of digital inputs (EF001992) | - |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of analogue inputs (EF001994) | - |
| Number of digital outputs (EF001993) | - |
| Article Number (Market Facing Number) | 6SL3210-1NE31-5UL0 |
| Nominal output current I2N (EF009561) | 145 |
| Number of analogue outputs (EF001995) | - |
| Degree of protection (NEMA) (EF011959) | - |
| Number of HW-interfaces USB (EF003025) | - |
| Supporting protocol for ASI (EF003051) | - |
| Supporting protocol for CAN (EF003053) | - |
| Supporting protocol for KNX (EF003055) | - |
| Supporting protocol for LON (EF003017) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| 4-quadrant operation possible (EF006803) | false |
| Number of HW-interfaces other (EF003027) | - |
| Number of interfaces PROFINET (EF006932) | - |
| Integrated breaking resistance (EF007293) | false |
| Number of HW-interfaces RS-232 (EF003021) | - |
| Number of HW-interfaces RS-422 (EF003022) | - |
| Number of HW-interfaces RS-485 (EF003023) | - |
| Supporting protocol for BACnet (EF011944) | - |
| Supporting protocol for Modbus (EF003057) | - |
| Supporting protocol for SERCOS (EF006657) | - |
| Supporting protocol for TCP/IP (EF003050) | - |
| Supporting protocol for SUCONET (EF003060) | - |
| Number of HW-interfaces parallel (EF003026) | - |
| Supporting protocol for INTERBUS (EF003054) | - |
| Supporting protocol for PROFIBUS (EF003052) | - |
| Supporting protocol for DeviceNet (EF003059) | - |
| Supporting protocol for PROFIsafe (EF007526) | - |
| Number of HW-interfaces serial TTY (EF003024) | - |
| Supporting protocol for EtherNet/IP (EF007521) | - |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | - |
| Supporting protocol for Data-Highway (EF003058) | - |
| Supporting protocol for PROFINET CBA (EF007524) | - |
| Supporting protocol for INTERBUS-Safety (EF006662) | - |
| Application in industrial area permitted (EF007294) | false |
| Relative symmetric net voltage tolerance (EF007453) | -10 |
| Supporting protocol for DeviceNet Safety (EF007520) | - |
| Supporting protocol for other bus systems (EF003062) | - |
| Relative symmetric net frequency tolerance (EF007454) | 5 |
| Number of HW-interfaces industrial Ethernet (EF003020) | - |
| Supporting protocol for Foundation Fieldbus (EF007522) | - |
| Max. output at linear load at rated output voltage (EF007364) | 55.0 |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | - |
| Max. output at quadratic load at rated output voltage (EF007366) | 75.0 |
| Application in domestic- and commercial area permitted (EF007295) | false |
| Compliance with the substance restrictions according to RoHS directive | Since: 20.02.2012 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
