6GK7277-1AA10-0AA0

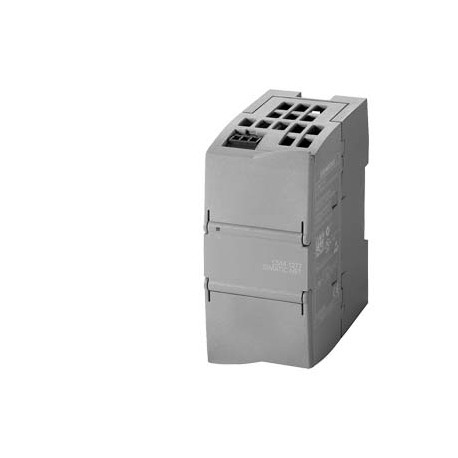

6GK7277-1AA10-0AA0 SIEMENS Compact Switch Module CSM 1277 for connecting SIMATIC S7-1200 and up to 3 further..
$0.00USD
3979 in stock
Key Specifications
:Value
EAN:4019169854399
UPC:040892607208
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4019169854399 |
| UPC | 040892607208 |
| ETIM | 4 |
| IDEA | 4 |
| MTBF | 273 y |
| Depth | 75 mm |
| Width | 45 mm |
| Design | SIMATIC S7-1200 device design |
| Height | 100 mm |
| UNSPSC | 14 |
| eClass | 6 |
| Standard | |
| Group Code | R320 |
| Net weight | 0.15 kg |
| ● C-Tick | Yes |
| ● for FM | FM3611: Class 1, Divison 2, Group A, B, C, D / T.., CL.1, Zone 2, GP. IIC, T.. Ta |
| Price Group | |
| Metal Factor | None |
| Internet-Link | |
| Mounting type | |
| Product Group | 2415 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Transfer rate | 10 Mbit/s, 100 Mbit/s |
| Commodity Code | 85176200 |
| Product family | CSM 1277 unmanaged |
| last modified: | 08/21/2020 |
| Net Weight (kg) | 0,225 Kg |
| ● KC approval | No |
| Depth (EF000049) | 75.0 |
| Product function | |
| Width (EF000008) | 45.0 |
| Country of origin | Germany |
| Height (EF000040) | 100.0 |
| Relative humidity | |
| ● for multimode | 0 |
| ● wall mounting | Yes |
| LKZ_FDB/ CatalogID | IK |
| Layer 2 (EF004883) | true |
| Layer 3 (EF004884) | false |
| Packaging Quantity | 1 |
| ● during storage | -40 ... +70 °C |
| Ambient temperature | |
| Ethernet (EF003535) | true |
| Packaging Dimension | 1,00 x 1,00 x 1,00 |
| Product Description | Compact Switch Module CSM 1277 for connecting SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet with 10/100 Mbit/s; unmanaged switch, 4 RJ45 ports, ext. 24 V DC power supply LED diagnostics, S7-1200 module incl. electronic Equipment Manual on CD-ROM |
| Protection class IP | IP20 |
| Security information | Siemens provides products and solutions with industrial security functions that support the secure operation of plants, solutions, machines, equipment and/or networks. They are important components in a holistic industrial security concept. With this in mind, Siemens’ products and solutions undergo continuous development. Siemens recommends strongly that you regularly check for product updates. For the secure operation of Siemens products and solutions, it is necessary to take suitable preventive action(e.g. cell protection concept) and integrate each component into a holistic, state-of-the-art industrial security concept. Third-party products that may be in use should also be considered. For more information about industrial security, visit http://www.siemens.com/industrialsecurity. To stay informed about product updates as they occur, sign up for a product-specific newsletter. For more information, visit http://support.automation.siemens.com. (V3.4) |
| ● during operation | 0 ... 60 °C |
| ● during transport | -40 ... +70 °C |
| ● for power supply | 1 |
| Manageable (EF004912) | false |
| ● for hazardous zone | EN 600079-15:2005, EN 600079-0:2006, II 3 G Ex nA II T4, KEMA 08 ATEX 0003 X |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● Bureau Veritas (BV) | Yes |
| ● multiport mirroring | No |
| Product type designation | SCALANCE CSM 1277 |
| ● S7-300 rail mounting | No |
| ● for single mode (LD) | 0 |
| Max. PoE power (EF009716) | - |
| ● S7-1500 rail mounting | No |
| Certificate of suitability | EN 61000-6-2, EN 61000-6-4 |
| Export Control Regulations | AL : N / ECCN : N |
| Mounting method (EF000003) | Other |
| ● Germanische Lloyd (GL) | No |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| ● 35 mm DIN rail mounting | Yes |
| Package size unit of measure | MM |
| ● Det Norske Veritas (DNV) | Yes |
| ● Nippon Kaiji Kyokai (NK) | Yes |
| ● for emitted interference | EN 61000-6-4 (Class A) |
| Number of 100 Mbit/s SC ports | |
| Type of electrical connection | |
| ● for interference immunity | EN 61000-6-2 |
| ● to website: Industry Mall | https://mall.industry.siemens.com |
| Number of 1000 Mbit/s LC ports | |
| Number of ports PoE (EF009715) | - |
| Power over Ethernet (EF009714) | - |
| Product Dimensions (W x L x H) | Not available |
| ● to website: Image database | http://automation.siemens.com/bilddb |
| Number of electrical connections | |
| Number of other ports (EF007643) | 0 |
| ● Polski Rejestr Statkow (PRS) | No |
| ● for safety / from CSA and UL | UL 508, CSA C22.2 No. 142 |
| Marine classification association | |
| Number of module slots (EF003597) | 0 |
| Product function / switch-managed | No |
| Degree of protection (IP) (EF005474) | IP20 |
| ● Power loss [W] / 1 / Rated value | 1.6 W |
| ● Supply voltage / 1 / Rated value | 24 V |
| ● Supply voltage / 1 / rated value | 19.2 ... 28.8 V |
| ● to website: CAx Download Manager | http://www.siemens.com/cax |
| Article Number (Market Facing Number) | 6GK7277-1AA10-0AA0 |
| ● Lloyds Register of Shipping (LRS) | Yes |
| Number of ports 100 Mbps SC (EF000900) | 0 |
| Number of ports 100 Mbps ST (EF000923) | - |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Certificate of suitability / CE marking | Yes |
| Number of ports 10 Gbps RJ45 (EF012063) | - |
| Number of ports 100 Mbps POF (EF009895) | - |
| ● to website: Industry Online Support | https://support.industry.siemens.com |
| Number of ports 1000 Mbps POF (EF009910) | - |
| ● to website: Industrial communication | http://www.siemens.com/simatic-net |
| Number of ports 1000 Mbps GBIC (EF004318) | 0 |
| Number of ports 1000 Mbps RJ45 (EF000902) | 0 |
| Number of ports 10/100 Mbps M12 (EF004315) | 0 |
| Number of ports 10/100 Mbps RJ45 (EF003549) | 4 |
| Type of voltage / 1 / of the supply voltage | DC |
| Number of max. stackable switches (EF003598) | 0 |
| Number of ports 10 Gbps Mini GBIC (EF008850) | - |
| Number of ports 1000 Mbps SC (LX) (EF003552) | 0 |
| Number of ports 1000 Mbps SC (SX) (EF003551) | 0 |
| Number of ports 40 Gbps Mini GBIC (EF012061) | - |
| Number of ports 100 Gbps Mini GBIC (EF012062) | - |
| Number of ports 1000 Mbps Mini GBIC (EF004321) | 0 |
| ● to website: Information and Download Center | http://www.siemens.com/industry/infocenter |
| Number of ports 10/100/1000 Mbps RJ45 (EF004316) | 0 |
| ● Royal Institution of Naval Architects (RINA) | No |
| ● for network components or terminal equipment | 4 |
| ● American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Number of ports 100/1000 Mbps Mini GBIC (EF008849) | - |
| ● to website: Selector SIMATIC NET SELECTION TOOL | http://www.siemens.com/snst |
| Number of combination-ports RJ45/Mini GBIC (EF004849) | 0 |
| ● at 25 °C / without condensation / during operation / maximum | 95 % |
| ● Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| ● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | No |
| Compliance with the substance restrictions according to RoHS directive | Given |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
