6ES7924-2CA20-0BA0

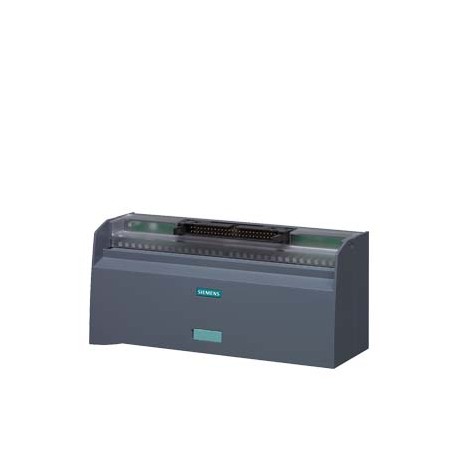

6ES7924-2CA20-0BA0 SIEMENS Connection module TP3 32 channels a. 2x33 terminals f. Potential supply Type: Scr..
$0.00USD
4231 in stock
Key Specifications
:VersionClassificationeClass627-14-11-28eClass7.127-14-11-28eClass827-14-11-28eClass927-14-11-28eClass9.127-14-11-28ETIM5EC000900ETIM6EC000900ETIM7EC000900ETIM8EC000900UNSPSC1439-12-14-10UNSPSC1539-12-14-10
EAN:4025515153863
UPC:887621850357
ETIM:5
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass627-14-11-28eClass7.127-14-11-28eClass827-14-11-28eClass927-14-11-28eClass9.127-14-11-28ETIM5EC000900ETIM6EC000900ETIM7EC000900ETIM8EC000900UNSPSC1439-12-14-10UNSPSC1539-12-14-10 | |
| EAN | 4025515153863 |
| UPC | 887621850357 |
| ETIM | 5 |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R315 |
| Metal Factor | None |
| Product Group | 9394 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85369010 |
| Product family | Connection modules |
| Net Weight (kg) | 0,540 Kg |
| Colour (EF000007) | Grey |
| Country of origin | Romania |
| Length (EF001438) | 76.0 |
| LKZ_FDB/ CatalogID | KT10-CA1 |
| Packaging Quantity | 1 |
| Packaging Dimension | 6,80 x 17,70 x 8,00 |
| Product Description | Connection module TP3 32 channels a. 2x33 terminals f. Potential supply Type: Screw terminal with LED, VPE=1 unit 50 pole IDC connector for cable |
| Colour lamp (EF001402) | Other |
| Product Lifecycle (PLM) | PM300:Active Product |
| Rated voltage (EF000228) | 50 |
| Export Control Regulations | AL : N / ECCN : EAR99 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Number of levels (EF002659) | 1 |
| Rated current In (EF008250) | 1 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Cross connectable (EF005717) | false |
| LED switching for (EF002537) | - |
| Package size unit of measure | CM |
| With PE connection (EF002534) | false |
| Connection position (EF008219) | Above |
| Disconnect function (EF006183) | false |
| Width/grid dimension (EF002522) | 175.0 |
| Operating temperature (EF002393) | ['0', '60'] |
| Closing plate required (EF002525) | false |
| With shield connection (EF002535) | false |
| Material insulation body (EF007543) | Other |
| Article Number (Market Facing Number) | 6ES7924-2CA20-0BA0 |
| With power supply function (EF002536) | true |
| Internally connected stages (EF002661) | false |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Explosion-tested version 'Ex e' (EF008498) | false |
| Type of electrical connection 1 (EF002526) | Plug-in connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of clamp positions per level (EF002660) | 1 |
| Height at lowest possible mounting height (EF002523) | 60.0 |
| Region Specific PriceGroup / Headquarter Price Group | 592 / 592 |
| Connectable conductor cross section solid-core (EF007337) | ['-', '-'] |
| Connectable conductor cross section multi-wired (EF007343) | ['0.5', '2.5'] |
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2014 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| Inflammability class of insulation material according to with UL94 (EF002521) | V1 |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | ['0.5', '2.5'] |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | - |
Product Description
SIMATIC TOP connect, TP3 connection module, 32 channels and 2 x 33 terminals for power, screw terminals, with LED, package = 1 pc., IDC connection, 50 poles/cable
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
