6ES7331-7TF01-0AB0

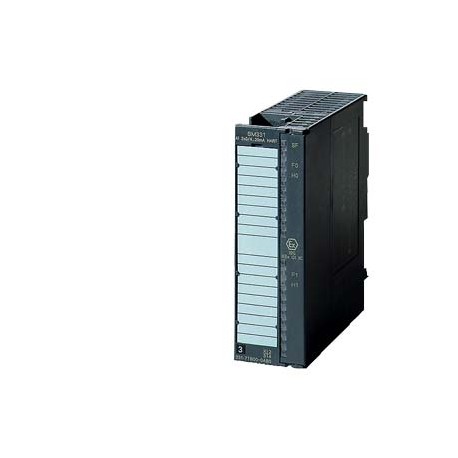

6ES7331-7TF01-0AB0 SIEMENS SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 20 mA HART, for ET200M with IM153..
$0.00USD
3532 in stock
Key Specifications
:Value
EAN:4025515075813
UPC:662643401455
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4025515075813 |
| UPC | 662643401455 |
| ETIM | 4 |
| IDEA | 4 |
| Depth | 117 mm |
| Width | 40 mm |
| Height | 125 mm |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R116 |
| Price Group | 280 |
| ● present | Yes |
| Metal Factor | None |
| Product Group | 2488 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● Step: low | Yes |
| Commodity Code | 85389091 |
| Product family | Analog input module with HART |
| last modified: | 08/25/2020 |
| ● 0 to 20 mA | Yes |
| ● Step: High | Yes |
| ● Step: None | Yes |
| Net Weight (kg) | 0,250 Kg |
| Weight, approx. | 205 g |
| Depth (EF000049) | 117.0 |
| Power loss, typ. | 1.5 W |
| Width (EF000008) | 40.0 |
| ● Step: Medium | Yes |
| Country of origin | Germany |
| Height (EF000040) | 125.0 |
| ● 4 mA to 20 mA | |
| LKZ_FDB/ CatalogID | ST73 |
| Packaging Quantity | 1 |
| ● shielded, max. | 800 m |
| Packaging Dimension | 13,20 x 15,40 x 5,10 |
| Product Description | SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 - 20 mA HART, for ET200M with IM153-2, 1 x 20-pole, Functions: FW update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping, |
| ● parameterizable | Yes |
| Diagnostics function | Yes |
| ● -20 mA to +20 mA | |
| ● Diagnostic alarm | Yes |
| ● Rated value (DC) | 24 V |
| Isolation tested with | 500 V DC |
| Measurement principle | Sigma Delta |
| ● Limit value alarm | Yes |
| IP degree of protection | IP20 |
| Number of analog inputs | 8 |
| Product Lifecycle (PLM) | PM300:Active Product |
| ● short-circuit proof | Yes |
| required front connector | 20-pin |
| ● Group error SF (red) | Yes |
| ● Supply current, max. | 60 mA |
| ● between the channels | No |
| IO link master (EF007298) | false |
| Input, current (EF003204) | true |
| Input, voltage (EF003205) | false |
| ● Integration time (ms) | 20 ms at 50 Hz; 16.6 ms at 60 Hz; 100 ms at 100 Hz |
| Export Control Regulations | AL : N / ECCN : EAR99H |
| Input, resistor (EF003206) | false |
| Output, current (EF003212) | - |
| Output, voltage (EF003213) | - |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| System accessory (EF004118) | true |
| Package size unit of measure | CM |
| Supply voltage DC (EF007534) | ['20.4', '28.8'] |
| Radio standard GSM (EF008524) | false |
| Input, thermocouple (EF003208) | false |
| Product Dimensions (W x L x H) | Not available |
| Radio standard GPRS (EF008523) | false |
| Radio standard UMTS (EF008525) | false |
| from backplane bus 5 V DC, max. | 120 mA |
| ● Reverse polarity protection | Yes |
| Rack-assembly possible (EF007018) | false |
| Rail mounting possible (EF003972) | true |
| — Input resistance (0 to 20 mA) | 140 Ω |
| Front build in possible (EF007016) | true |
| Supply voltage AC 50 Hz (EF007532) | - |
| Supply voltage AC 60 Hz (EF007533) | - |
| Radio standard Bluetooth (EF007178) | false |
| ● Channel fault indicator F (red) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Number of analogue inputs (EF001994) | 8 |
| — Input resistance (4 mA to 20 mA) | 140 Ω |
| Article Number (Market Facing Number) | 6ES7331-7TF01-0AB0 |
| Input signal, configurable (EF003209) | true |
| Number of analogue outputs (EF001995) | 0 |
| Output signal configurable (EF003214) | - |
| Radio standard WLAN 802.11 (EF007179) | false |
| SIL according to IEC 61508 (EF009889) | - |
| ● Integration time, parameterizable | Yes |
| Degree of protection (NEMA) (EF011959) | - |
| Number of HW-interfaces USB (EF003025) | 0 |
| Supporting protocol for ASI (EF003051) | false |
| Supporting protocol for CAN (EF003053) | false |
| Supporting protocol for KNX (EF003055) | false |
| Supporting protocol for LON (EF003017) | false |
| Type of electric connection (EF003961) | Screw-/spring clamp connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Analogue inputs configurable (EF008518) | true |
| — Input resistance (-20 mA to +20 mA) | 140 Ω |
| Analogue outputs configurable (EF008519) | - |
| Input, resistance thermometer (EF003207) | false |
| Number of HW-interfaces other (EF003027) | 0 |
| Number of interfaces PROFINET (EF006932) | 0 |
| Suitable for safety functions (EF001597) | false |
| Wall mounting/direct mounting (EF007020) | true |
| Category according to EN 954-1 (EF006782) | - |
| Number of HW-interfaces RS-232 (EF003021) | 0 |
| Number of HW-interfaces RS-422 (EF003022) | 0 |
| Number of HW-interfaces RS-485 (EF003023) | 0 |
| Supporting protocol for Modbus (EF003057) | false |
| Supporting protocol for SERCOS (EF006657) | false |
| Supporting protocol for TCP/IP (EF003050) | false |
| Voltage type of supply voltage (EF002991) | - |
| from load voltage L+ (without load), max. | 20 mA |
| Supporting protocol for SUCONET (EF003060) | false |
| ● between the channels and backplane bus | Yes |
| Number of HW-interfaces Wireless (EF006933) | 0 |
| Number of HW-interfaces parallel (EF003026) | 0 |
| Supporting protocol for INTERBUS (EF003054) | false |
| Supporting protocol for PROFIBUS (EF003052) | true |
| ● Current, relative to input range, (+/-) | 0.15 % |
| Appendant operation agent (Ex ia) (EF004141) | false |
| Appendant operation agent (Ex ib) (EF004142) | false |
| Explosion safety category for gas (EF003997) | ATEX gas-ex-protection, Cat. 3G |
| Resolution of the analogue inputs (EF003575) | 16 |
| Supporting protocol for DeviceNet (EF003059) | false |
| Supporting protocol for PROFIsafe (EF007526) | - |
| Explosion safety category for dust (EF003998) | None |
| Number of HW-interfaces serial TTY (EF003024) | 0 |
| Resolution of the analogue outputs (EF003577) | - |
| Supporting protocol for EtherNet/IP (EF007521) | false |
| Supporting protocol for PROFINET IO (EF007525) | - |
| Supporting protocol for SafetyBUS p (EF007527) | false |
| Supporting protocol for Data-Highway (EF003058) | false |
| Supporting protocol for PROFINET CBA (EF007524) | false |
| ● for current measurement as 2-wire transducer | Yes |
| ● for current measurement as 4-wire transducer | Yes |
| Supporting protocol for INTERBUS-Safety (EF006662) | false |
| Supporting protocol for DeviceNet Safety (EF007520) | false |
| Supporting protocol for other bus systems (EF003062) | true |
| Number of HW-interfaces industrial Ethernet (EF003020) | 0 |
| Supporting protocol for Foundation Fieldbus (EF007522) | false |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● Basic conversion time, including integration time (ms) | 55 ms @ 60 Hz, 65 ms @ 50 Hz, 305 ms @ 100 Hz |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false |
| Fieldbus connection over separate bus coupler possible (EF004002) | false |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Compliance with the substance restrictions according to RoHS directive | Since: 25.11.2009 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
| ● Interference voltage suppression for interference frequency f1 in Hz | 10 / 50 / 60 Hz |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
