6ES7193-4CC30-0AA0

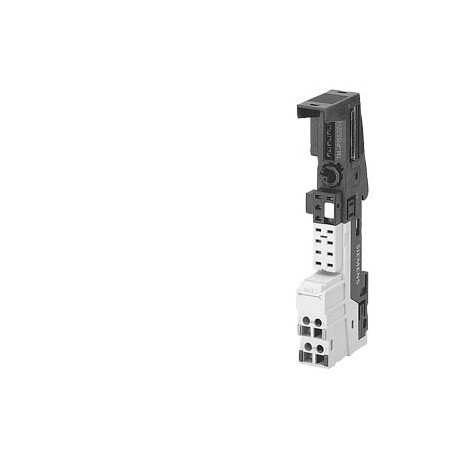

6ES7193-4CC30-0AA0 SIEMENS SIMATIC DP, Terminal module TM-P15C23-A1 for ET 200S for power modules, 15 mm wid..
$0.00USD
3814 in stock
Key Specifications
:Value
EAN:4025515059936
UPC:662643227499
ETIM:4
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4025515059936 |
| UPC | 662643227499 |
| ETIM | 4 |
| IDEA | 4 |
| Depth | 43 mm |
| Width | 15 mm |
| Height | 132 mm |
| UNSPSC | 14 |
| eClass | 6 |
| Group Code | R111 |
| Price Group | 250 |
| Metal Factor | None |
| Product Group | 4056 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| Commodity Code | 85389099 |
| Product family | Terminal modules for power modules and electronic modules |
| last modified: | 08/25/2020 |
| Net Weight (kg) | 0,063 Kg |
| Weight, approx. | 65 g |
| Depth (EF000049) | 43.0 |
| Width (EF000008) | 15.0 |
| Country of origin | Poland |
| Height (EF000040) | 132.0 |
| LKZ_FDB/ CatalogID | ST76 |
| PLM Effective Date | Product phase-out since: 01.10.2020 |
| Packaging Quantity | 1 |
| Packaging Dimension | 5,00 x 13,30 x 2,80 |
| Product Description | SIMATIC DP, Terminal module TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 continuous |
| Product Lifecycle (PLM) | PM300:Active Product |
| Export Control Regulations | AL : N / ECCN : N |
| Number of slots (EF003077) | 2 |
| Delivery quantity in pieces | 1 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| System accessory (EF004118) | true |
| Package size unit of measure | CM |
| Input voltage at DC (EF007120) | ['24.0', '48'] |
| Product Dimensions (W x L x H) | Not available |
| Output voltage at DC (EF007001) | ['24', '48'] |
| Max. input current DC (EF007362) | 10.0 |
| Max. output current DC (EF007353) | 10.0 |
| Rack-assembly possible (EF007018) | false |
| Rail mounting possible (EF003972) | true |
| Type of output voltage (EF008222) | AC/DC |
| Front build in possible (EF007016) | true |
| Input voltage at AC 50 Hz (EF007118) | ['120', '230'] |
| Input voltage at AC 60 Hz (EF007119) | ['120', '230'] |
| Article Number (Market Facing Number) | 6ES7193-4CC30-0AA0 |
| Output voltage at AC 50 Hz (EF006999) | ['120', '230'] |
| Output voltage at AC 60 Hz (EF007000) | ['120', '230'] |
| SIL according to IEC 61508 (EF009889) | - |
| Max. input current AC 50 Hz (EF007360) | 10.0 |
| Max. input current AC 60 Hz (EF007361) | 10.0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Max. output current AC 50 Hz (EF007351) | 10.0 |
| Max. output current AC 60 Hz (EF007352) | 10.0 |
| With integrated power supply (EF003338) | false |
| Suitable for safety functions (EF001597) | false |
| Wall mounting/direct mounting (EF007020) | true |
| Category according to EN 954-1 (EF006782) | - |
| With pluggable modules, others (EF003083) | true |
| Type of voltage (input voltage) (EF003033) | AC/DC |
| Appendant operation agent (Ex ia) (EF004141) | false |
| Appendant operation agent (Ex ib) (EF004142) | false |
| Explosion safety category for gas (EF003997) | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust (EF003998) | None |
| With pluggable modules, digital I/O (EF003078) | false |
| With pluggable modules, analogue I/O (EF003079) | false |
| With pluggable modules, central modules (EF003082) | false |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| With pluggable modules, communication modules (EF003080) | false |
| With pluggable modules, function and technology modules (EF003081) | false |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
