6ES7193-4CB20-0AA0

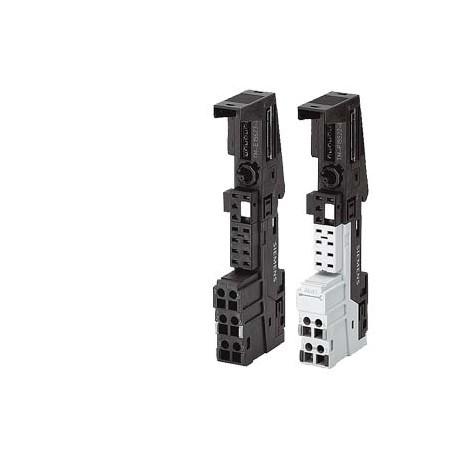

6ES7193-4CB20-0AA0 SIEMENS SIMATIC DP, 5 terminal modules TM-E15S24-01 for ET 200S for electronic modules 15..
$0.00USD
4698 in stock
Key Specifications
:VersionClassificationeClass1227-24-26-03eClass627-24-26-03eClass7.127-24-26-03eClass827-24-26-03eClass927-24-26-03eClass9.127-24-26-03ETIM7EC001598ETIM8EC001598IDEA43560UNSPSC1532-15-17-04
EAN:4025515059905
UPC:662643222449
ETIM:7
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-24-26-03eClass627-24-26-03eClass7.127-24-26-03eClass827-24-26-03eClass927-24-26-03eClass9.127-24-26-03ETIM7EC001598ETIM8EC001598IDEA43560UNSPSC1532-15-17-04 | |
| EAN | 4025515059905 |
| UPC | 662643222449 |
| ETIM | 7 |
| IDEA | 4 |
| UNSPSC | 15 |
| eClass | 12 |
| Group Code | R151 |
| Metal Factor | None |
| Product Group | 2301 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Package |
| Commodity Code | 85389099 |
| Product family | Terminal modules for power modules and electronic modules |
| Net Weight (kg) | 0,371 Kg |
| Depth (EF000049) | 43.0 |
| Width (EF000008) | 15.0 |
| Country of origin | Romania |
| Height (EF000040) | 132.0 |
| LKZ_FDB/ CatalogID | ST76 |
| PLM Effective Date | Product phase-out since: 01.10.2020 |
| Packaging Quantity | 5 |
| Packaging Dimension | 15,90 x 17,60 x 5,00 |
| Product Description | SIMATIC DP, 5 terminal modules TM-E15S24-01 for ET 200S for electronic modules 15 mm width, Screw terminals, 2x4 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Export Control Regulations | AL : N / ECCN : N |
| Number of slots (EF003077) | 2 |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| System accessory (EF004118) | true |
| Package size unit of measure | CM |
| Input voltage at DC (EF007120) | ['24.0', '120'] |
| Output voltage at DC (EF007001) | ['24', '120'] |
| Max. input current DC (EF007362) | 10.0 |
| Max. output current DC (EF007353) | 10.0 |
| Rack-assembly possible (EF007018) | false |
| Rail mounting possible (EF003972) | true |
| Type of output voltage (EF008222) | AC/DC |
| Front build in possible (EF007016) | true |
| Input voltage at AC 50 Hz (EF007118) | ['24', '230'] |
| Input voltage at AC 60 Hz (EF007119) | ['24', '230'] |
| Article Number (Market Facing Number) | 6ES7193-4CB20-0AA0 |
| Output voltage at AC 50 Hz (EF006999) | ['24', '230'] |
| Output voltage at AC 60 Hz (EF007000) | ['24', '230'] |
| SIL according to IEC 61508 (EF009889) | - |
| Max. input current AC 50 Hz (EF007360) | 10.0 |
| Max. input current AC 60 Hz (EF007361) | 10.0 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Max. output current AC 50 Hz (EF007351) | 10.0 |
| Max. output current AC 60 Hz (EF007352) | 10.0 |
| With integrated power supply (EF003338) | false |
| Suitable for safety functions (EF001597) | false |
| Wall mounting/direct mounting (EF007020) | true |
| Category according to EN 954-1 (EF006782) | - |
| With pluggable modules, others (EF003083) | true |
| Type of voltage (input voltage) (EF003033) | AC/DC |
| Appendant operation agent (Ex ia) (EF004141) | false |
| Appendant operation agent (Ex ib) (EF004142) | false |
| Explosion safety category for gas (EF003997) | ATEX gas-ex-protection, Cat. 3G |
| Explosion safety category for dust (EF003998) | None |
| With pluggable modules, digital I/O (EF003078) | true |
| With pluggable modules, analogue I/O (EF003079) | true |
| With pluggable modules, central modules (EF003082) | false |
| Region Specific PriceGroup / Headquarter Price Group | 2AP / 2AP |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| With pluggable modules, communication modules (EF003080) | true |
| With pluggable modules, function and technology modules (EF003081) | true |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
SIMATIC ET200 IP20. ET200S, 5 terminal modules TM-E15S24-01 for ET 200S for electronic modules, 15 mm wide, screw terminals, 2x 4 terminal connections without access to AUX1 per terminal, AUX1 uninter
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
