6EP1433-2CA00

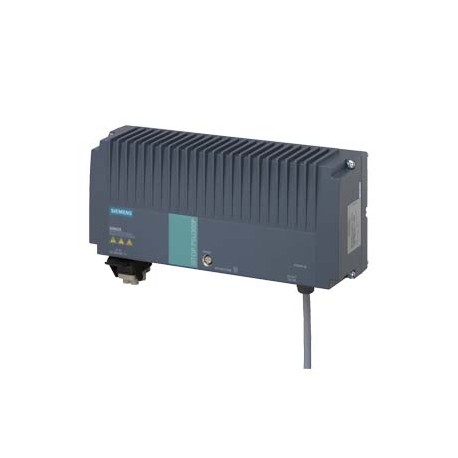

6EP1433-2CA00 SIEMENS SITOP PSU300P 8 A Stabilized power supply Protection class IP67 input: 3 AC 400-480 V ..
$0.00USD
4281 in stock
Key Specifications
:Value
EAN:4042948510834
UPC:662643788969
Input:3-phase AC
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Value | |
| EAN | 4042948510834 |
| UPC | 662643788969 |
| Input | 3-phase AC |
| Notes | Sucessor:Information via Product ManagementThis product is a Spare Part, please visit the Spares & Service section for more informationIf you need assistance please contact our local Siemens office |
| Output | Controlled, isolated DC voltage |
| CE mark | Yes |
| — Note | with natural convection |
| ● Note | 320 ... 340 V for max. 1 min |
| Signaling | max. 30 V, 10 mA; Power-Good (High-Pegel 1L+ for Vout in range 21.3 ... 29 V); Overtemperature warning at least 30 s before switch-off (high level 1L+ when the max. internal temperature is exceeded) |
| Group Code | R315 |
| I²t, max. | 3.5 A²·s |
| ● Output | L+, M: 1 x 2 mm² each (2-pole cable for +/- with open, labeled ends, 2 x 2 mm²) |
| CB approval | Yes |
| Connections | |
| FM approval | - |
| Price Group | 5ZT |
| ● maximum | 10 A |
| ● typical | 0.4 mA |
| Installation | Can be mounted onto ET200pro mounting rail |
| Metal Factor | None |
| Current range | 0 ... 8 A |
| Input current | |
| Product Group | 4741 |
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. |
| Quantity Unit | 1 Piece |
| ● Auxiliary | Alarm signals: M12 plug-in connector 5-pin |
| Commodity Code | 85044090 |
| Noise immunity | EN 61000-6-2 |
| Product family | Not available |
| Status display | Green LED for 24 V OK |
| Leakage current | |
| Mains buffering | at Vin = 400 V |
| Marine approval | - |
| Net Weight (kg) | 2,800 Kg |
| On/off behavior | Overshoot of Vout < 2 % |
| Weight, approx. | 2.8 kg |
| Depth (EF000049) | 90.0 |
| Protection class | Class I |
| Rated line range | 45 ... 66 Hz |
| Voltage range AC | 340 ... 550 V |
| Wide-range input | Yes |
| Width (EF000008) | 310.0 |
| ● Supply input | L1, L2, L3, PE: Plug connector HAN Q4/2 (counterpart see "Electrical accessories") |
| Country of origin | Germany |
| Height (EF000040) | 135.0 |
| Other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) |
| Galvanic isolation | Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178 |
| LKZ_FDB/ CatalogID | KT10-PE |
| PLM Effective Date | Product is cancelled since: 13.05.2020 |
| Packaging Quantity | 1 |
| Voltage rise, typ. | 40 ms |
| ● during storage | -40 ... +70 °C |
| Ambient temperature | |
| Packaging Dimension | 25,50 x 39,00 x 17,00 |
| Product Description | SITOP PSU300P 8 A Stabilized power supply Protection class IP67 input: 3 AC 400-480 V output: 24 V DC/8 A |
| Startup delay, max. | 1.5 s |
| Emitted interference | EN 55022 Class A |
| Explosion protection | - |
| Setting time maximum | 2 ms |
| ● during operation | -25 ... +55 °C |
| ● during transport | -40 ... +70 °C |
| Connection technology | screw-type terminals |
| Rated voltage Vout DC | 24 V |
| Stabilized (EF005302) | - |
| UL/cUL (CSA) approval | UL-Listed (UL 508) according to NFPA compatibility (National Fire Protection Association), see operating instructions |
| Built-in incoming fuse | T 4 A |
| Depth of the enclosure | 90 mm |
| Electrical accessories | Power connector (3RK1911-2BE50 (2.5mm²)) |
| Output voltage setting | - |
| Overvoltage resistance | Implemented internally with varistors |
| Rated line frequency 1 | 50 Hz |
| Rated line frequency 2 | 60 Hz |
| Width of the enclosure | 310 mm |
| Height of the enclosure | 135 mm |
| Power output (EF003034) | 192.0 |
| Product Lifecycle (PLM) | PM410:Product cancellation |
| Current limitation, typ. | 9.4 A |
| Short-circuit protection | Electronic shutdown, automatic restart |
| Built-in width (EF000846) | - |
| Built-in height (EF000332) | - |
| Export Control Regulations | ECCN : EAR99H / AL : N |
| Modular version (EF001126) | false |
| Total tolerance, static ± | 3 % |
| Primary/secondary isolation | Yes |
| Short-term overload current | |
| Standard lead time ex-works | On request |
| Supply harmonics limitation | - |
| Surcharge for Raw Materials | None |
| Package size unit of measure | CM |
| Power consumption (EF000346) | - |
| Output overvoltage protection | < 33 V |
| Rated voltage value Vin rated | 400 ... 480 V |
| Supplied active power typical | 192 W |
| Product Dimensions (W x L x H) | Not available |
| Rated current value Iout rated | 8 A |
| Short-circuit-proof (EF007332) | true |
| Static load balancing, approx. | 0.5 % |
| Degree of protection (EN 60529) | IP67, enclosure type 5 indoor |
| Residual ripple peak-peak, max. | 200 mV |
| Max. output current 1 (EF008284) | 8 |
| Max. output current 2 (EF008285) | - |
| Max. output current 3 (EF008286) | - |
| Overload/short-circuit indicator | - |
| ● at rated input voltage 400 V | 0.5 A |
| Rail mounting possible (EF003972) | - |
| Wall mounting possible (EF003973) | - |
| Static mains compensation, approx. | 0.5 % |
| Direct mounting possible (EF005689) | true |
| Mains buffering at Iout rated, min. | 15 ms; at Vin = 400 V |
| Degree of protection (IP) (EF005474) | - |
| Humidity class according to EN 60721 | Climate class 3K3, 5 … 95% no condensation |
| Output voltage stabilized (EF003092) | - |
| Article Number (Market Facing Number) | 6EP1433-2CA00 |
| Rated supply voltage at DC (EF007078) | - |
| SIL according to IEC 61508 (EF009889) | - |
| ● at short-circuit during operation | 100 ms |
| Degree of protection (NEMA) (EF011959) | - |
| Type of electric connection (EF003961) | Screw connection |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| 1st secondary output voltage (EF006792) | ['24', '24'] |
| 2nd secondary output voltage (EF006797) | - |
| 3rd secondary output voltage (EF006800) | - |
| Secondary voltage adjustable (EF007002) | false |
| Enduring short circuit current RMS value | |
| Suitable for safety functions (EF001597) | - |
| Nominal value output current 1 (EF009396) | 8.0 |
| Nominal value output current 2 (EF009397) | - |
| Nominal value output current 3 (EF009398) | - |
| Nominal value output voltage 1 (EF009393) | - |
| Nominal value output voltage 2 (EF009394) | - |
| Nominal value output voltage 3 (EF009395) | - |
| Voltage type of supply voltage (EF002991) | AC |
| Product function output voltage adjustable | No |
| Property of the output Short-circuit proof | Yes |
| Spikes peak-peak, max. (bandwidth: 20 MHz) | 250 mV |
| Switch-on current limiting (+25 °C), max. | 40 A |
| Parallel switching for enhanced performance | No |
| Rated supply voltage at AC 50 Hz (EF007076) | ['400', '400'] |
| Rated supply voltage at AC 60 Hz (EF007077) | ['480', '480'] |
| ● on short-circuiting during the start-up | 100 ms |
| Efficiency at Vout rated, Iout rated, approx. | 88 % |
| Power loss at Vout rated, Iout rated, approx. | 25 W |
| Protection in the mains power input (IEC 898) | Required: Circuit breaker 3RV2011-1DA10 or 3RV2711-1DD10 (UL 489) |
| ● at short-circuit during operation typical | 50 A |
| Width in number of modular spacings (EF002950) | - |
| Dynamic mains compensation (Vin rated ±15 %), max. | 0.5 % |
| ● on short-circuiting during the start-up typical | 50 A |
| Duration of overloading capability for excess current | |
| Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ. | 1 % |
| Performance level according to EN ISO 13849-1 (EF007399) | - |
| Product feature of the enclosure housing for side-by-side mounting | No |
| Compliance with the substance restrictions according to RoHS directive | Since: 01.10.2006 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Lead CAS-No. 7439-92-1 > 0, 1 % (w / w)Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):LeadBased on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):
