In Stock Hot Product
6DR5322-0DN22-0AA4

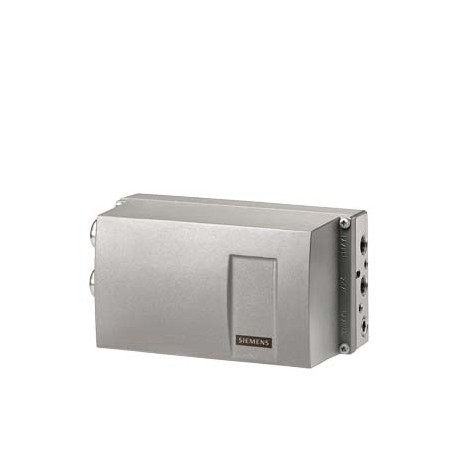

6DR5322-0DN22-0AA4 SIEMENS SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn a..
$0.00USD
4705 in stock
Key Specifications
:VersionClassificationeClass1227-22-04-01eClass7.127-22-04-01eClass827-22-04-01eClass927-22-04-01eClass9.127-22-04-01ETIM8EC011197UNSPSC1532-15-17-03
EAN:Not available
UPC:Not available
ETIM:8
Supplier Information
SIEMENS
Products: 367174
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| VersionClassificationeClass1227-22-04-01eClass7.127-22-04-01eClass827-22-04-01eClass927-22-04-01eClass9.127-22-04-01ETIM8EC011197UNSPSC1532-15-17-03 | |
| EAN | Not available |
| UPC | Not available |
| ETIM | 8 |
| Notes | Sucessor:3/4 wire phase out. Please use 6DR50* for 4 … 20 mA applications. |
| UNSPSC | 15 |
| eClass | 12 |
| Group Code | R3P2 |
| Metal Factor | None |
| Product Group | 4759 |
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. |
| Quantity Unit | 1 Piece |
| Commodity Code | 90328100 |
| Product family | SIPART PS2 |
| Net Weight (kg) | 4,390 Kg |
| Country of origin | Germany |
| LKZ_FDB/ CatalogID | FI01-5 |
| PLM Effective Date | Product phase-out since: 02.06.2023 |
| Packaging Quantity | 1 |
| Product Description | SIPART PS2 smart electropneumatic positioner for pneumatic linear and part-turn actuators; 2-,3-,4-wire; 4...20mA; double action; Enclosure Stainless steel without inspection window Standard Type of protection (Ex): Increased safety (Ex e), Dust ignition protection by enclosure (Ex t). Connection thread el.: 1/2" NPT / pneu.: 1/4" NPT Inductive Limit Switches (ILS), 2 inductive limit switches and 1 digital output. " Analog Input Module (AIM) to connect external position detection systems, e. g. NCS Sensor, Position Transmitter 6DR4004-1ES/2ES/3ES/4ES or other sensors. The internal position detection via a potentiometer is not applied but can be ordered in addition with ‑Z K11. . Brief instructions English / German / Chinese. Standard / Fail-Safe - Depressurizing the actuator in case of failure of electrical auxiliary power (single acting only). Manometer block aluminum ¼‑18 NPT, double-acting with plastic manometer IP31 (MPa, psi) |
| Product Lifecycle (PLM) | PM400:Phase Out Started |
| Export Control Regulations | ECCN : N / AL : N |
| Standard lead time ex-works | 1 Day/Days |
| Surcharge for Raw Materials | None |
| Package size unit of measure | Not available |
| Article Number (Market Facing Number) | 6DR5322-0DN22-0AA4 |
| WEEE (2012/19/EU) Take-Back Obligation | Yes |
| Region Specific PriceGroup / Headquarter Price Group | 8V1 / 8V1 |
| Compliance with the substance restrictions according to RoHS directive | Since: 31.12.2016 |
| REACH Art. 33 Duty to inform according to the current list of candidates | Reach InformationThere is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
