In Stock Hot Product
694045

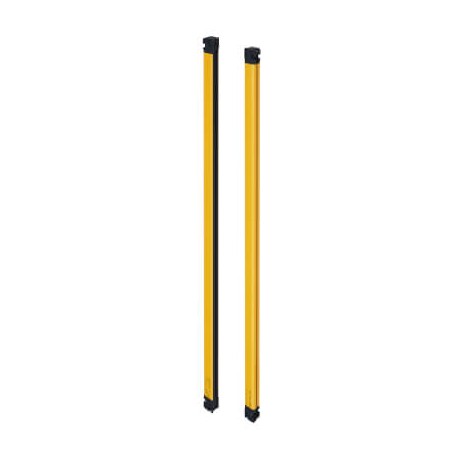

F3SG-4SRA1600-25 694045 OMRON Safety optical barrier, advanced F3SG-SRA, type 4, 25 mm resolution, range 0.3..
$0.00USD
4131 in stock
Key Specifications
():XS5F-D521-DJ0-IL
Cascadable:
Beam spacing:20 mm
Key features:Area Beam Indicator, Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Vibration detection, Warning zone
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | XS5F-D521-DJ0-IL |
| Cascadable | |
| Beam spacing | 20 mm |
| Key features | Area Beam Indicator, Auxiliary output, Blanking, Designated beam output, External Device Monitoring (EDM), External test, Interlock, Muting, Mutual interference prevention, Operating range selection, PNP/NPN selection, Pre-reset, Response time adjustment, Vibration detection, Warning zone |
| Voltage type | DC |
| Width sensor | 32 mm |
| Response time | 13 ms |
| Overall length | 1600 mm |
| Sensing method | Safety light curtain |
| Number of beams | 80 |
| Height of sensor | 38 mm |
| With beam coding | |
| Scope of delivery | Transmitter and receiver |
| Supply voltage DC | 19.2-28.8 V |
| Type of protection | Hand protection |
| Ambient temperature | -30-55 °C |
| Safety field height | 1600 mm |
| Detection capability | 25 mm |
| Maximum safety range | 20 m |
| With muting function | |
| Communication option(s) | Bluetooth, IO-Link, USB |
| Wavelength of the sensor | 870 nm |
| Degree of protection (IP) | IP65/IP67/IP67G |
| Minimum operating distance | 0.3 m |
| Type of electric connection | Connector M12 |
| Suitable for safety functions | |
| Number of intermediate brackets | 1 |
| Number of fixed side-mount brackets | 3 |
| Type of switching output of the OSSD | PNP/NPN |
| Max. output current at protected output | 300 mA |
| Type of safety according to IEC 61496-1 | 4 |
| Number of adjustable side-mount brackets | 3 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
Product Description
Safety Light Curtain, F3SG-SRA Advanced, Type 4, 25 mm resolution, range 0.3 to 20.0 m, height 1600 mm, PNP/NPN
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
