In Stock Hot Product
69040

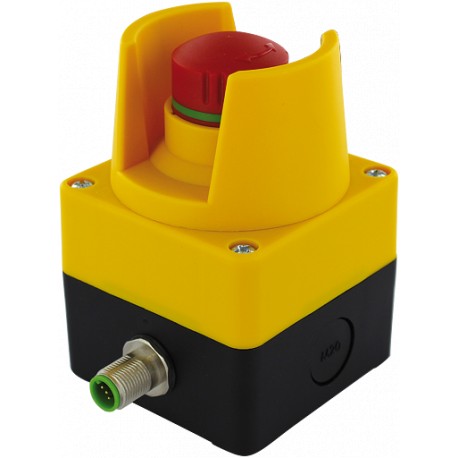

69040 MURRELEKTRONIK Emergency-stop pushbutton with 2 positive opening contacts
$0.00USD
4427 in stock
Key Specifications
EAN:4048879594806
B10d:250 000
AC-15:3 A (250 V AC)
DC-13:2 A (24 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879594806 |
| B10d | 250 000 |
| AC-15 | 3 A (250 V AC) |
| DC-13 | 2 A (24 V DC) |
| PIN 1 | N/C 1 |
| PIN 2 | N/C 1 |
| PIN 3 | N/C 2 |
| PIN 4 | N/C 2 |
| eClass | 27371244 |
| Housing | cULus, Type 4x |
| Weight: | 0.193 kg |
| Art.No.: | 69040 |
| Connector | UR |
| Connection | M12 (4-pole) |
| Lambda (d) | 20% (N/C) |
| Protection | IP65 |
| Contact maker | UL, TÜV |
| Module holder | UL, TÜV |
| Packaging unit | 1 |
| Mounting method | screw fixing |
| Temperature range | -25...+60 °C (storage temperature -25...+85 °C) |
| country of origin | DE |
| Material (contact) | Ag Ni |
| Mech./ elect. life | 1 000 000 operations, load-temperature dependent |
| Switching capacity | 30 A (AC 15); 2.2 A (DC 13) |
| Contact bounce time | max. 9 ms |
| Emergency-Stop button | cULus, TÜV, UR (NISD 2) |
| customs tariff number | 85365080 |
| Dimensions H × W × D | 104×72×91 mm |
Product Description
Emergency-stop pushbutton with 2 positive opening contactsin a IP65 enclosure
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
