69013

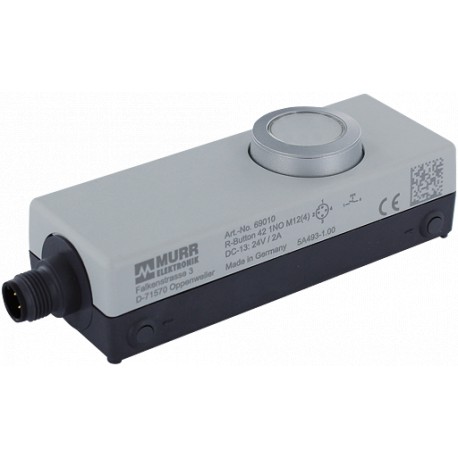

69013 MURRELEKTRONIK Reset button with 1 illuminated push button
$0.00USD
4705 in stock
Key Specifications
EAN:4048879600507
B10d:1 000 000
AC-15:1.5 A (240 V AC)
DC-13:2 A (24 V DC)
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879600507 |
| B10d | 1 000 000 |
| AC-15 | 1.5 A (240 V AC) |
| DC-13 | 2 A (24 V DC) |
| PIN 1 | N/O 1 |
| PIN 2 | (X1/+) |
| PIN 3 | (X2/-) |
| PIN 4 | N/O 1 |
| eClass | 27371244 |
| Housing | UR |
| Weight: | 0.106 kg |
| Art.No.: | 69013 |
| LED Light | max. 30 V AC/DC typ. 14 mA (24 V DC) |
| Connection | M12 (4-pole) |
| Lambda (d) | 50% (N/O) |
| Protection | IP65 |
| Packaging unit | 1 |
| Mounting method | with clip on back |
| Temperature range | -25...+70 °C (storage temperature -25...+85 °C) |
| country of origin | DE |
| Material (contact) | Ag Ni |
| Mech./ elect. life | 1 000 000 operations, load-temperature dependent |
| Switching capacity | 15 A (AC 15); 2.2 A (DC 13) |
| Contact bounce time | max. 10 ms |
| Emergency-Stop button | UR |
| customs tariff number | 85365080 |
| Dimensions H × W × D | 29×124×42 mm |
Product Description
Reset button with 1 illuminated push button1 NO contact in a IP65enclosure
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
