689659

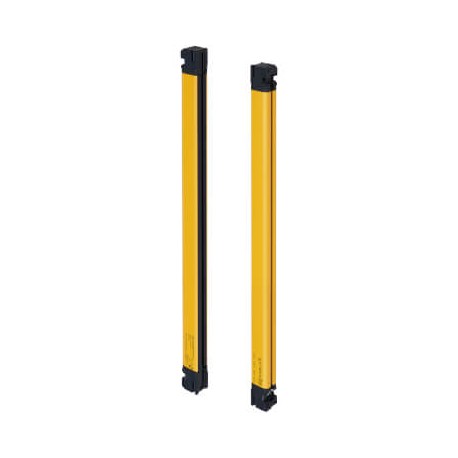

F3SG-2SRB0760-85 689659 OMRON Safety Light Curtain, F3SG-SRB Standard, Type 2, 85 mm resolution, range 0.3 t..
$0.00USD
3901 in stock
Key Specifications
():F39-SGIT-IL3
Beam gap:80 mm
Cascadable:
Voltage type:DC
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| () | F39-SGIT-IL3 |
| Beam gap | 80 mm |
| Cascadable | |
| Voltage type | DC |
| Width sensor | 32 mm |
| Overall length | 760 mm |
| Type of sensor | Body detection |
| Number of beams | 10 |
| Height of sensor | 38 mm |
| Time of reaction | 8 ms |
| With beam coding | |
| Scope of delivery | Transmitter and receiver |
| Supply voltage DC | 19.2-28.8 V |
| Ambient temperature | -30-55 °C |
| Safety field height | 760 mm |
| Detection capability | 85 mm |
| Maximum safety range | 20 m |
| With muting function | |
| Communication option(s) | Bluetooth, IO-Link, USB |
| Wavelength of the sensor | 870 nm |
| Degree of protection (IP) | IP65/IP67/IP67G |
| Minimum operating distance | 0.3 m |
| Type of electric connection | Connector M12 |
| Suitable for safety functions | |
| Type of safety acc. IEC 61496-1 | 2 |
| Type of switching output of the OSSD | PNP/NPN |
| Max. output current at protected output | 300 mA |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
