In Stock Hot Product
67598

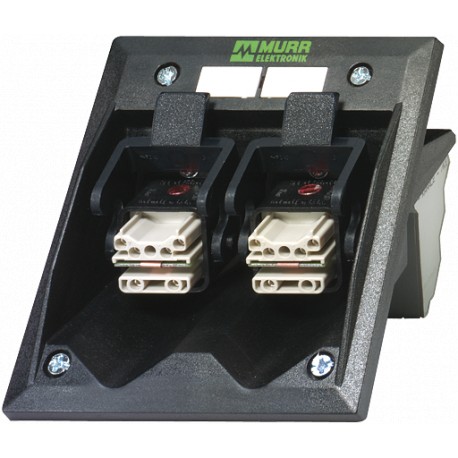

67598 MURRELEKTRONIK HYBRID FIELD-BUS COUPLERS
$0.00USD
4297 in stock
Key Specifications
EAN:4048879041492
eClass:27189217
Cut-out:H × W: 90 × 80 mm
Housing:Black plastic, flame retardant
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879041492 |
| eClass | 27189217 |
| Cut-out | H × W: 90 × 80 mm |
| Housing | Black plastic, flame retardant |
| Weight: | 0.17 kg |
| Art.No.: | 67598 |
| Shielded | no |
| Connection | Spring clamp terminals: 0.25 mm² single core, 2.5 mm² stranded |
| Transfer rate | max. 12 Mbit/s |
| Packaging unit | 1 |
| Operating voltage | 24 V DC |
| Temperature range | -25...+50 °C |
| country of origin | DE |
| customs tariff number | 85366990 |
| Dimensions H × W × D | 103×93×65 mm |
| Field Bus Coupling IP67 | Han-Brid® |
Product Description
HYBRID FIELD-BUS COUPLERS Conversion electrical-electrical (passive)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
