In Stock Hot Product
6686477

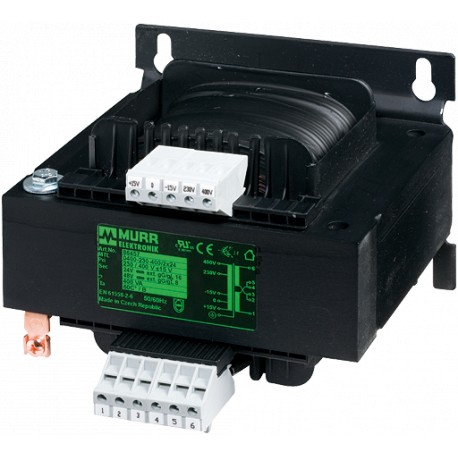

6686477 MURRELEKTRONIK MTL single-phase control and isolation transformer P: 400VA IN: 230/400VAC +/- 15VAC ..
$0.00USD
3745 in stock
Key Specifications
EAN:4048879065870
eClass:27031302
Art.No.::6686477
Frequency:50...60 Hz
Supplier Information
MURRELEKTRONIK
Products: 57918
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | 4048879065870 |
| eClass | 27031302 |
| Art.No.: | 6686477 |
| Frequency | 50...60 Hz |
| Standards | EN 61558-1, EN 61558-2-4, EN 62041 category 0 |
| Drill hole Ø | 7×11 mm |
| Input current | 2 A (230 V AC); 1.17 A (400 V AC) |
| Input voltage | 230/400 ±15 V AC |
| Output rating | 400 VA |
| Inrush current | 32 A (230 V AC); 18.48 A (400 V AC) |
| Output voltage | 1 × 230, 1 × 115, 2 × 115 V AC |
| Packaging unit | 1 |
| Mounting method | DIN-rail mountable TH35-15 (EN 60715) or for key-hole mounting |
| Temperature range | -20...+60 °C (storage temperature -40...+80 °C) |
| country of origin | CZ |
| Alternative product: | Product ComparisonSingle-phase - Control and Isolation Transformers400 VASpring clamp terminalsIsolation class T 60/BInputInput voltage230/400 ±15 V ACFrequency50...60 HzInput current2 A (230 V AC); 1.17 A (400 V AC)Inrush current32 A (230 V AC); 18.48 A (400 V AC)Short-circuit current59 A (230 V AC); 34.1 A (400 V AC)General dataTest isolation voltage4 kV (prim./sec.)StandardsEN 61558-1, EN 61558-2-4, EN 62041 category 0Drill hole Ø7×11 mmMounting methodDIN-rail mountable TH35-15 (EN 60715) or for key-hole mountingFixing centers a × b × c95×122×7 mmDimensions H × W × D113×151×146 mmTemperature range-20...+60 °C (storage temperature -40...+80 °C)OutputOutput voltage1 × 230, 1 × 115, 2 × 115 V ACOutput rating400 VACommercial datacountry of originCZcustoms tariff number85043180EAN4048879065870eClass27031302Packaging unit1 |
| Short-circuit current | 59 A (230 V AC); 34.1 A (400 V AC) |
| customs tariff number | 85043180 |
| Dimensions H × W × D | 113×151×146 mm |
| Test isolation voltage | 4 kV (prim./sec.) |
| Fixing centers a × b × c | 95×122×7 mm |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
